Lithonia Lighting Lithonia Lighting 400MP TB SCWA HSG


Description

Industry Description

Die cast aluminum housing, interchangeable optics, 400 Watt Metal Halide, 120, 208, 240, and 277V, Super constant wattage autotransformer, Housing, SKU - 157EJK

Modified Industry Description

400W METAL HALIDE LOW BAY PULSE START BALLAST

AD Description

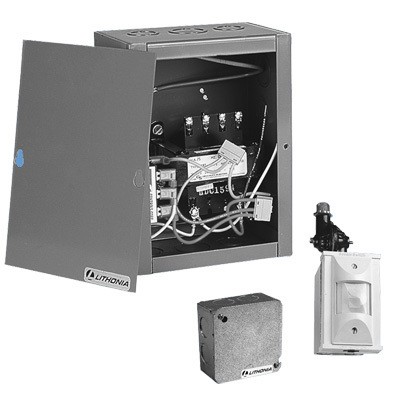

Lithonia Lighting® TX 400MP TB SCWA HSG Ballast Housing, HID Lamp, 400 W, 120/208/240/277 VAC, Pulse

Specifications

Application
Atrium, Auditorium, Manufacturing, Sports and Recreation, Warehouse/Storage
Ballast_Type
Constant Wattage Autotransformer (C.W.A)
Brand Name
Lithonia Lighting
Color
White
Country of Origin
MX
Finish
Gloss
Lamp_Included
False
Lamp_Type
HID
Material
Aluminum
Mounting
Pendant, Suspended
Number_Of_Lamps
1
Socket_Type
Mogul: EX39
Special Features

  • 16 ga, galvanized steel support ring with matching keyhole hole pattern for vibration resistant mounting
  • All ballasts are 100% factory tested
  • Ballast and electrical components are heat sinked and horizontally opposed
  • For areas that require good vertical illumination and excellent glare control at low mounting heights
  • For use with O rated protected metal halide lamps only
  • Four 8 to 32 zinc plated, tri-lobular, thread-rolling screws are arranged concentrically around the lamp socket
  • Heavy duty, die cast aluminum halves
  • Hinge and lens retainer latches facilitate tool less lens removal for cleaning and maintenance
  • Integral splice box mounting flange ensures structural integrity
  • It is designed for superior uniformity, optimum glare control and solid efficiencies
  • Matching wire access cover accepts RELOC® modular wiring
  • Removable cast aluminum box slides on integral die cast aluminum housing mounting flange and mounts to 3/4 in pendant conduit prior to ballast housing installation
  • Super constant wattage autotransformer
  • Vertically oriented mogul base protected EXCLUSIONARY base "PINK" socket with copper alloy nickel plated screw shell and center contact
Standard
UL
Start_Type
Pulse
Sub_Brand
Lithonia Lighting
Type
Bay Light
Voltage Rating
120/208/240/277
Wattage
400
