Ge Industrial GE Industrial THHQB32080


Description

Industry Description

Q line circuit breakers are one-inch wide per pole, compact, thermal-magnetic devices designed for residential and commercial applications. The QB breakers are bolt-on versions of the Q Line used for bolting to the bus connections of load centers and lighting panels. All Q Line circuit breakers feature Quick-make / Quick-break mechanisms, common trip bars, and easy to spot trip indication to ensure safety and reliability. Q Line breakers are available in 1, 2, and 3 pole versions, can be ordered with auxiliary contact and shunt trip accessories, and can be ordered for use in HID applications. 2080 Amps 80 A 20808650

AD Description

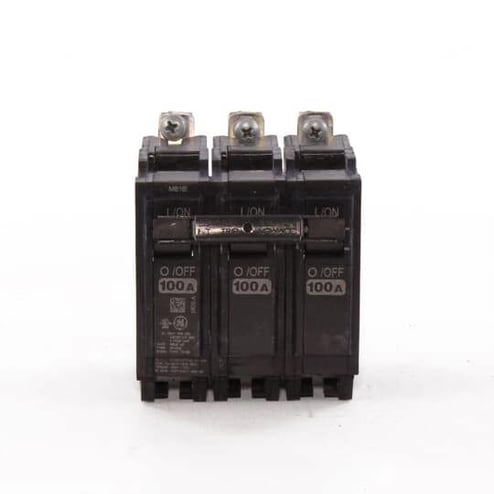

GE Q-Line® THHQB32080 Type THHQB Compact Molded Case Circuit Breaker, 240 VAC, 80 A, 22 kA Interrupt, 3 Poles, LI/Non-Interchangeable Thermal Magnetic Trip

Vendor Description

Q-Line® circuit breakers are 1 in wide per pole, compact, thermal magnetic devices designed for residential and commercial applications. the QB breakers are bolt-on versions of the Q-Line® used for bolting to the bus connections of loadcenters and lighting panels. all Q-Line® circuit breakers feature quick-make quick-break mechanisms, common trip bars and easy to spot trip indication to ensure safety and reliability. Q-Line® breakers are available in 1, 2 and 3-pole versions, can be ordered with auxiliary contact and shunt trip accessories and can be ordered for use in HID applications.

Specifications

Application
Electrical distribution and Control
Country of Origin
UKN
Length1
3.0000
Special Features

  • 22 kA at 120 VAC, 22 kA at 120/240 VAC, 22 kA at 240 VAC interrupt rating
  • Arc chutes of heat absorbing, insulating material and metal grid plates quickly ''extinguish'' arcs
  • Common trip bar assures instant disconnect of all conductors when an overload or short circuit occurs on any one conductor in the circuit or an accessory trip device operates
  • Molded case is molded from high mechanical and high dielectric strength engineered plastic
  • Quick-make, quick-break, trip-free mechanism minimizes arcing during breaker operation, contacts cannot be ''teased'' into position
  • Silver alloy contacts combine the conductive properties of silver with other elements for clean, positive electrical contacting, pitting and burning are minimized for longer contact life
  • Trip indication is shown by handle position midway between ON and off to reset the trip mechanism, move the handle to extreme off then to ON position
  • Trip-free mechanism is independent of manual handle control, the breaker trips under short circuit or overload, even though the operating handle is held in ON position
  • UL listed lugs for copper or aluminum cable, at full frame rating, easy access and simple, straight in wiring
  • VERIFIER™ "twist-to-trip" and ''push-to-trip'' mechanically simulates over current tripping through actuation of linkages not operated by the on-off handle
Sub_Brand
GE Industrial Solution
Type
Circuit Breakers
