Hubbell Hubbell 074093566
Hubbell 074093566
Kirby Risk #: 2263449
UPC: 78358533212, 783585332123, 00783585332123
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Kellems Wire Management, LiquidtightSystem, 45 Degree, 1 1/2", Insulated with Mesh
Modified Industry Description
45 S-TITE GRIP, 1 1/2IN, INS W/MESH
AD Description

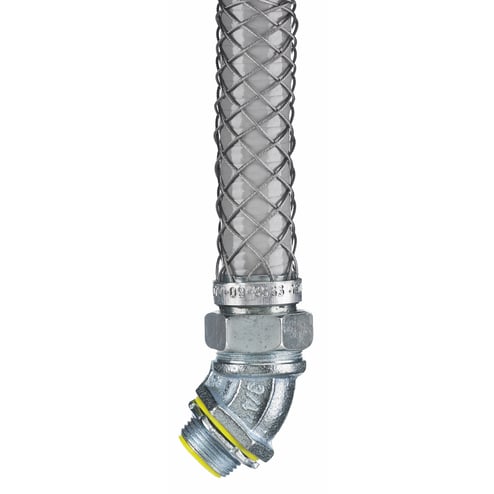

Wiring Device-Kellems 74093566 45 deg Insulated Strain Relief Grip With Male Fitting, Insulated Throat, Stainless Steel Mesh, 1-1/2 in Conduit, 6-3/4 in L Mesh, Steel, Zinc Plated
Vendor Description
Wiring Device-Kellems Liquidtight, flexible metal conduit grips are offered with high quality Hubbell plated steel fittings in a wide variety of NPT sizes and configurations, either insulated or non-insulated. The addition of a stainless steel mesh to these fittings makes them stronger than the conduit itself. Kellems conduit grips helps prevent conduit pull out from the connecting fitting that is subject to stress, pull tension, vibration, motion or strain. They promote safe electrical systems and reduce equipment downtime.
Specifications
| Application |
45 Degree Male
|
|---|---|
| Color |
Metallic
|
| Connection |
Cap Nut
|
| Country of Origin |
PR
|
| Environmental_Conditions |
Suitable for use in wet locations when a listed sealing ring is used between box and fitting
|
| Finish |
Metallic
|
| Length1 |
15.0000
|
| Material |
Stainless Steel/Steel
|
| Mounting |
Between Enclosure and Conduit
|
| NEMA_Rating |
Suitable for use in hazardous locations per Class 1 Div 2, Class II Div 1 & 2, Class III Div 1 & 2
|
| Series |
Liquidtight Conduit
|
| Size |
1 1/2 in
|
| Special Features |
|
| Standard |
UL 898D and UL899D
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
-40 to 225
|
| Type |
Liquid-Tight Connectors with Mesh
|
