Hubbell Hubbell A5100P9
Hubbell A5100P9
Kirby Risk #: 2260184
UPC: 78358539287, 783585392875, 00783585392875
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description

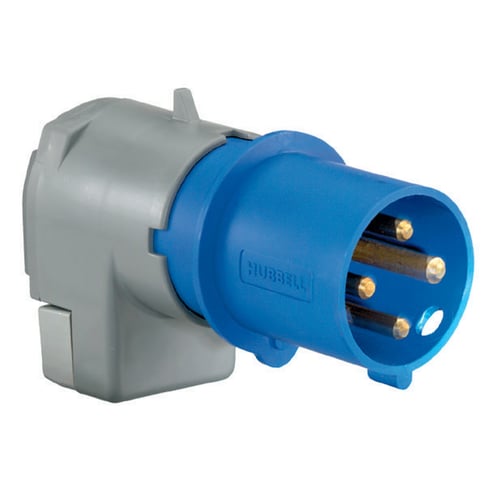

Hubbell Wiring Device Kellems, Heavy Duty Products, IEC Pin and SleeveDevices, Industrial Grade, Male Plug, 100A 3-Phase Wye 120/208V AC, 4-Pole 5-Wire Grounding, Terminal Screws, Blue, Angled
Modified Industry Description
100A 120/208V 4 POLE 5 WIRE MALE PIN PLUG
AD Description
Wiring Device-Kellems A5100P9 Heavy Duty Low Profile Male Standard Watertight Pin & Sleeve Plug, 120 to 208Y VAC, 100 A, 4 Poles, 5 Wires, Blue
Specifications
| Amperage Rating |
100
|
|---|---|
| Application |
High Ampacity Connections
|
| Brand Name |
Hubbell
|
| Color |
Blue
|
| Connection |
Pressure Terminal Screws
|
| Conductor Size |
#3 AWG to #1/0 AWG
|
| Cord_Type |
All Portable
|
| Country of Origin |
US
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Material |
Composite
|
| Mounting |
Cord Mounted
|
| NEMA_Rating |
Non-NEMA
|
| Number_Of_Poles |
4
|
| Number_Of_Wires |
5
|
| Phase |
3
|
| Size |
Standard Sized
|
| Special Features |
|
| Standard |
UL 498, IEC 309-1 and 309-2
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
Low Profile Male Plug
|
| Voltage Rating |
120/208
|
