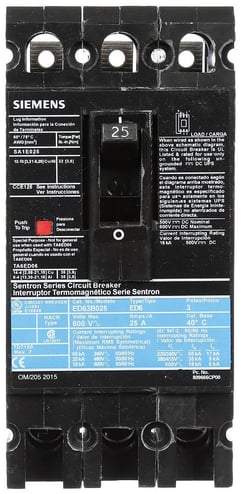

Siemens Siemens ED63B025
Siemens ED63B025
Kirby Risk #: 2256898
UPC: 78364320968, 783643209688, 00783643209688
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Siemens
Description
Industry Description
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. STANDARD 40 DEG C BREAKER ED FRAME WITH STANDARD BREAKING CAPACITY. 25A 3-POLE (18KAIC AT 600V) (25KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES LOAD LUGS ONLY (SA1E025) WIRE RANGE 14 - 10AWG (CU) / 12 - 10AWG (AL). DIMENSIONS (W x H x D) IN 3.00 x 6.4 x 3.92.
Modified Industry Description
BREAKER ED 3P 25A 600V 18KA LD LUG
AD Description
Siemens Sentron™ ED63B025 Type ED6 Low Voltage Molded Case Circuit Breaker With Load Lug, 600 VAC/250 VDC, 25 A, 18 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Specifications
| Actuator |
Varying
|
|---|---|
| Amperage Rating |
25
|
| Auxiliary_Contacts |
N/A
|
| Brand Name |
Siemens
|
| Connection |
N/A
|
| Country of Origin |
MX
|
| Enclosure |
Varying
|
| Environmental_Conditions |
N/A
|
| Frame |
ED6
|
| Frequency_Rating |
50/60
|
| Interrupt_Rating |
18
|
| Material |
N/A
|
| Number_Of_Poles |
3
|
| Operating_Temperature |
40C
|
| Phase |
3
|
| Special Features |
N/A
|
| Standard |
HACR
|
| Sub_Brand |
Siemens
|
| Trip_range |
N/A
|
| Trip_Type |
Thermal Magnetic
|
| Type |
Low Voltage
|
| Voltage Rating |
600 VAC/250 VDC
|
| Width_2 |
3.9000
|
| Width_3 |
40.0000
|
