Ideal Ideal 774002
Ideal 774002
Kirby Risk #: 2247719
UPC: 78325057356, 783250573561, 00783250573561, 30783250573562
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Ideal
Description
Industry Description
IDEAL, Toggle Switch, Medium And Light-Duty, Short Ball, On-Off, Voltage Rating: 125, 250 VAC, Number Of Poles: 1, Amperage Rating: 6, 3 AMP, Action: SPST, Connection: Wire Leads, 2 Terminals, Wire Leads Are 18 AWG, 6 IN Stripped Wire, Actuator: Toggle, Size: 0.890 IN Length X 0.470 IN Width X 0.550 IN Height, Mounting: 1/2 IN Hole Diameter
Modified Industry Description
SWITCH,SHORT BALL,O-F,LEAD
AD Description

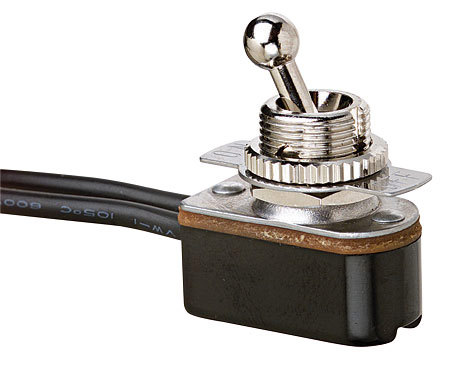

IDEAL® 774002 Light/Medium Duty Short Ball Toggle Switch, 125/250 VAC, 6/3 A, SPST ON/OFF Contact
Specifications
| Action |
SPST
|
|---|---|
| Actuator |
Toggle
|
| Amperage Rating |
6/3
|
| Application |
For Household Appliances And Equipment
|
| Brand Name |
Ideal
|
| Connection |
Wire Leads, 2 Terminals, Wire Leads Are 18 AWG, 6 IN Stripped Wire
|
| Contact_Configuration |
SPST ON/OFF
|
| Country of Origin |
CHN
|
| Mounting |
1/2 IN Hole Diameter
|
| Number_Of_Poles |
1
|
| Size |
0.890 IN Length X 0.470 IN Width X 0.550 IN Height
|
| Special Features |
|
| Standard |
CSA, C/US RU Listed, RoHS
|
| Sub_Brand |
Ideal
|
| Type |
Light/Medium Duty Short Ball
|
| Voltage Rating |
125/250
|
