Thomas & Betts Thomas & Betts RDV367
Thomas & Betts RDV367
Kirby Risk #: 2246662
UPC: 78621093119, 786210931197, 30786210931198
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Thomas & Betts
Description
Industry Description

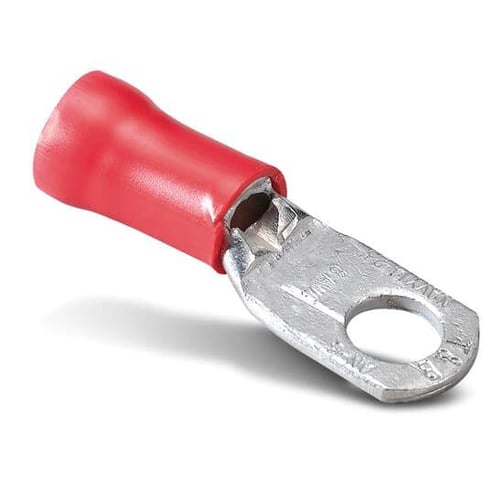

Vinyl Insulated Large Ring Terminal, Length 1.48 Inches, Width .42 Inches, Maximum Insulation .340, Bolt Hole #10, Wire Range 8, Color Red, Copper, Tin Plated
Modified Industry Description
8 AWG, 10 BOLT - RING TERMINAL, NYLON INSULATED, RED
AD Description
Sta-Kon® RDV367 RD Series Insulated Ring Terminal, 8 AWG Conductor, 1.48 in L, Brazed/Overlapped Seam Barrel, Copper, Red
Vendor Description
Sta-Kon® wire terminals offer more copper and a wider funnel to assure premium connection with less work in a line that includes insulated and non-insulated terminals, splices, wire joints, disconnects, ferrules, heat shrinkable terminals, splices and disconnects.
Specifications
| Brand Name |
Thomas & Betts
|
|---|---|
| Color |
Red
|
| Conductor Range |
8
|
| Conductor Size |
8
|
| Country of Origin |
MUL
|
| Finish |
Tin Plated
|
| Insulation_Material |
Vinyl
|
| Material |
Copper
|
| Package_Quantity |
200
|
| Special Features |
|
| Standard |
UL E9809
|
| Stud_Size |
#10
|
| Sub_Brand |
Sta-Kon
|
| Type |
Insulated
|
| Voltage Rating |
600
|
