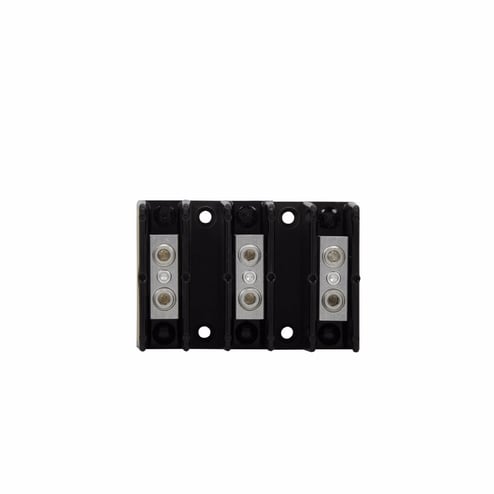

Bussmann Bussmann PDB204-3


Description

Industry Description

175A 600V Splicer High SCCR 3-Pole Power Distribution Block, 2/0-#8 Cu

Modified Industry Description

175A 600V POWER DISTRIBUTION BLOCK 3 POLE 2/0 8 CU

AD Description

Bussmann PDB204-3 Barrier Power Terminal Block, 600 VAC/VDC, 175 A, 3 Poles, 8 to 2/0 AWG Wire

Vendor Description

Bussmann series high Short-Circuit Current Rating (SCCR) power distribution blocks provide up to 200 kA SCCR and help achieve compliance with National Electrical Code (NEC) and OSHA requirements by resolving a common SCCR "weak link" in industrial control panels. Available in 1-, 2- and 3-pole panel mount versions with popular lineside and loadside port configurations, these blocks are UL Listed and provide the requisite spacing between uninsulated opposite polarities or ground by meeting the UL 1953 1 in through air and 2 in over surface for 301 to 600 volt applications.

Specifications

Amperage Rating
175
Application
Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
Class
Q5
Color
Black
Country of Origin
MUL
Dimensions
2.88 in L x 4.27 in W x 2.13 in H
Finish
Tin Plated
Length1
2.8400
Material
Tin Plated Aluminum Connectors
Mounting
Panel
Number_Of_Poles
3
Series
PDB
Size
2.88 In Length X 4.27 In Width X 2.13 In Height
Special Features

  • (1) box lug primary, (1) box lug secondary
  • 8 to 2/0 AWG line/load copper wire
  • By replacing a low rated PDB with a new cooper bussmann high SCCR PDB, an assembly can achieve a higher SCCR for more installation flexibility
  • Equipment with low SCCRs are limited to locations where only low-level short circuit current is available
  • PDBs are often an assembly's lowest-rated component or features weak link and may limit the assembly SCCR to only 10kA, eliminate this weak link with these new, higher-rated PDBs
Standard
UL 1953, CSA, CE, IEC
Sub_Brand
Cooper Bussmann
Type
Barrier
Voltage Rating
600
