Description

Industry Description

Hubbell Wiring Device Kellems, Heavy Duty Products, Single Pole Devices,Industrial Grade, Female Receptacle, 300/400A 250V DC/600V AC, SingleConductor, Set Screw, Orange

Modified Industry Description

300/400A 600/250V FEMALE ORANGE

AD Description

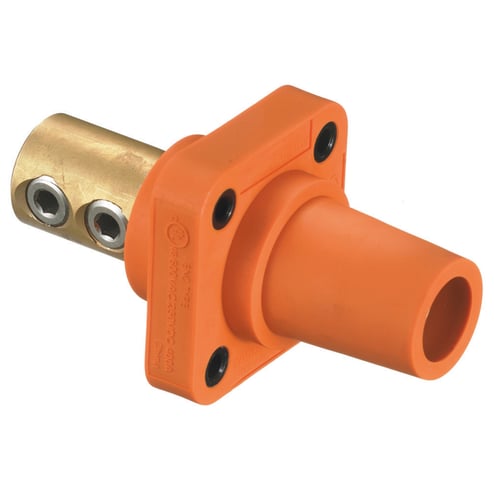

Wiring Device-Kellems HBLFRO 16 Series Female Straight Single Pole Receptacle With 300/400 A Plug, 600 VAC/250 VDC, 400 A, 4 to 4/0 AWG Wire, Double Set Screw Connection

Vendor Description

Hubbell wiring Device-Kellems offers a full line of innovative, high quality, series 16 single pole receptacles and accessories for the most demanding environments. Single pole devices are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. Single pole devices have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength non-conductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve.

Specifications

Amperage Rating
400
Application
High Ampacity Connections
Brand Name
Hubbell
Color
Orange
Connection
Double Set Screw
Conductor Size
#4 AWG to #4/0 AWG
Country of Origin
CN
Environmental_Conditions
Indoor Dry unless Protected by Additional Means
Material
Elastomer/Composite
Mounting
Threaded Thru-Hole
NEMA_Rating
Non-NEMA
Number_Of_Poles
1
Number_Of_Wires
1
Phase
1
Size
Standard Sized Product
Special Features
Standard
Standard
UL 498 for attachment plugs and receptacles UL 1691 draft standard for single pin and sleeve devices intended for theatre, stage and studio applications
Sub_Brand
Hubbell Wiring Device-Kellems
Type
Panel Mount Receptacle
Voltage Rating
600//250
Wattage
240,000
