3M 3M 40132
3M 40132
Kirby Risk #: 2232356
UPC: 05400713608, 054007136088, 00054007136088
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: 3M
Description
Industry Description
3M™ Scotchlok™ 40100 2 Hole Compression Lug is suitable for use with copper or aluminum conductors. The lug has a standard barrel that ensures a secure fit. Aluminum construction offers high conductivity and an electro tin plated finish resists corrosion. It is rated for 35 kV voltage applications.
Modified Industry Description
Copper/Aluminum Two-Hole Lug
AD Description

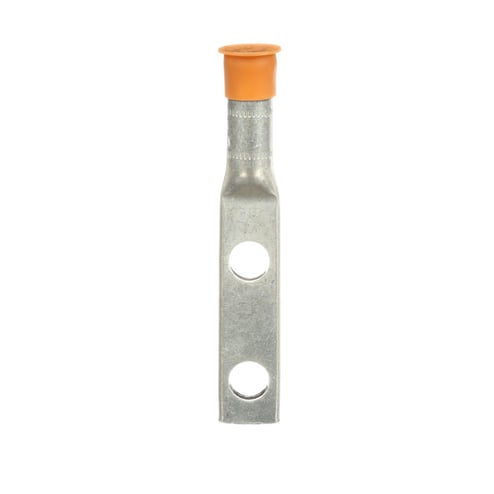

Scotchlok™ 40132 2-Hole Compression Lug, 1/0 AWG Conductor, 3/8 in Stud, Aluminum
Specifications
| Application |
Aluminum or Copper Conductors
|
|---|---|
| Brand Name |
3M
|
| Color |
Tan
|
| Conductor Material |
Aluminum - Copper
|
| Conductor Size |
1/0 AWG
|
| Country of Origin |
US
|
| Label_Description |
3M(TM) SCOTCHLOK(TM) COPPER/ALUMINUM TWO HOLE LUG 40132, TAN, 1/0 AWG, 10 PER CASE
|
| Material |
Aluminum
|
| Number_Of_Holes |
2
|
| Package_Quantity |
10
|
| Special Features |
|
| Standard |
UL
|
| Stud_Size |
3/8 in
|
| Sub_Brand |
3M
|
| Type |
2-Hole
|
| Voltage Rating |
35 kV
|
