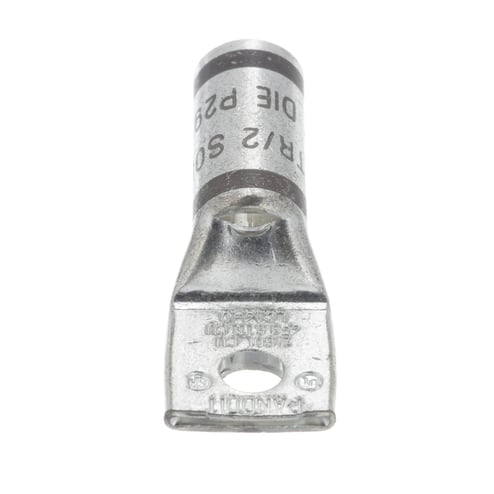

Panduit Panduit LCA4-10-L

Name: Panduit LCA4-10-L
Brand: Panduit
SKU: 2229006
Price: 4.71 USD
Availability: InStock

Panduit LCA4-10-L

Kirby Risk #: 2229006

UPC: 07498390010, 074983900107, 30074983900108, 00074983900107

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Panduit

Description

Industry Description

One-hole, standard barrel with window lug, #4 Â— #3 AWG STR, #2 AWG SOL wire, #10 stud hole.

Modified Industry Description

Copper Compression Lug, 1 Hole, #4

AD Description

Panduit® LCA4-10-L 1-Hole Compression Lug, 4 to 3 AWG Copper Conductor, Die Code: P29, #10 Stud, Tin Plated Copper

Brand Name	Panduit
Color	Gray
Conductor Material	Copper
Conductor Size	4 to 3
Country of Origin	MEX
Material	Tin Plated Copper
Mounting	7/8
Number_Of_Holes	1
Package_Quantity	1
Size	#4 – #3 Code STR, #2 Code SOL
Special Features	4 to 3 AWG stranded, 2 AWG solid wire 7/8 in L wire strip Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection For use with stranded copper conductors Inspection window to visually assure full conductor insertion Straight tongue angle Tin plated to inhibit corrosion
Standard	C22.2 No. 65-13, 486A-486B File #E52164
Stud_Size	#10
Sub_Brand	Panduit
Temperature_Rating	90
Type	1-Hole
Voltage Rating	35
