3M 3M MNG14-10RX


Description

Industry Description

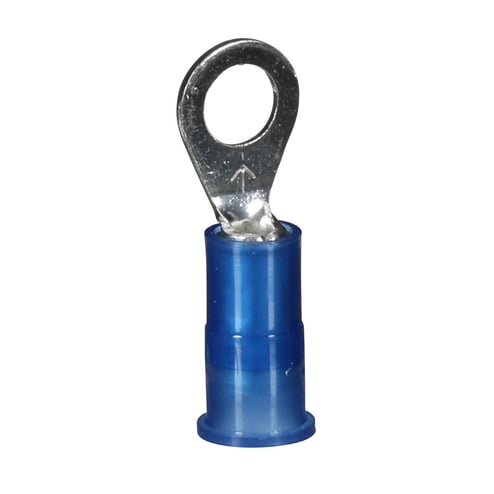

3M™ Scotchlok™ Color-Coded Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Modified Industry Description

Nylon Insulated w/Insulation Grip

AD Description

Scotchlok™ 051128-58965 Insulated Standard Ring Terminal, 16 to 14 AWG Conductor, 0.91 in L, Butted Seam Barrel, Copper, Blue

Vendor Description

3M™ Scotchlok™ Color-Coded Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance.

Specifications

Brand Name
3M
Color
Blue
Conductor Range
16-14
Conductor Size
16 to 14 AWG
Country of Origin
US
Finish
Tin Plated
Insulation_Material
Nylon
Label_Description
RING NYLON INSULATED, 100/BOTTLE
Material
Copper
Operating_Voltage
100 per bottle
Package_Quantity
100
Special Features

  • 100 Terminals/Bottle
  • 500 Terminals/Case
  • Blue nylon insulated grip, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Crimp termination
  • Free hanging (in-line) mounting
  • Funnel designed, seamless brass sleeve offers easy insertion of wires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Standard-style ring tongue fits around the stud
Standard
UL and CSA
Stud_Size
#10
Sub_Brand
3M
Terminal_Size
16 - 14 AWG
Type
Insulated Standard
Voltage Rating
600/1000 VAC
