Southwire Southwire MC/AL-SOL-12-2 W/G-CU-1000 FT

Name: Southwire MC/AL-SOL-12-2 W/G-CU-1000 FT
Brand: Southwire
SKU: 2224304
Price: 1061.15 USD
Availability: InStock

Southwire MC/AL-SOL-12-2 W/G-CU-1000 FT

Kirby Risk #: 2224304

UPC: 03288634751, 032886347511, 00032886347511

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Southwire

Description

Industry Description

12-2 SOL CU THHN ORANGE/GRAY/GREEN AIA MC 600V 1000 FT

Modified Industry Description

MC CABLE, SOLID, 12 AWG, 2 CONDUCTORS, 1000 FT

AD Description

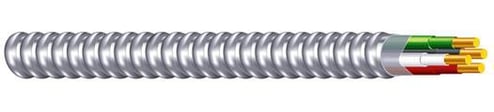

Southwire® Armorlite® 68940602 Type MC THHN Building Wire, 600 VAC, (2) 12 AWG Soft Drawn Copper Conductor, 1000 ft L, Gray/Green/Orange

Amperage Rating	20
Brand Name	Southwire
Conductor Material	CU
Conductor Type	Soft Drawn Copper
Conductor Size	12
Country of Origin	MUL
Jacket_Material	PVC
Number Of Conductors	2
Outside_Diameter	0.4746
Package_Quantity	1000
Special Features	A black sunlight resistant, flame retardant PVC jacket is applied over the armor Aluminum interlocking armor is applied over the assembly Green insulated grounding conductor Print legend is included on the binder tape as well as the overall PVC jacket PVC jacketed is constructed with soft-drawn, copper Sizes AWG 14 through AWG 2, rated vw-1 Sunlight resistant The conductors are cabled together and a binder tape is wrapped around the assembly Type THHN/THWN conductors rated 90 deg C dry/75 deg C wet and a green insulated grounding conductor
Sub_Brand	Southwire
Type	Type MC
Voltage Rating	600
