Lithonia Lighting Lithonia Lighting 2RT5 28T5 MVOLT GEB95 LPM835P


Description

Industry Description

Volumetric Frameless Grid Troffer T5, 28W T5 (46''), MVOLT, 120-277V, Ballast factor .95, set light, Lamped with premier 3500degK lamp, SKU - 890715

Modified Industry Description

2FTX4FT 120/277V T5 RECESSED TROFFER 3500K COLOR TEMP

AD Description

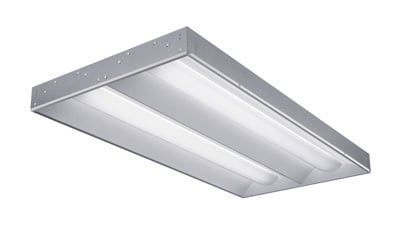

Lithonia Lighting® 2RT5 28T5 MVOLT GEB95 LPM835P Frameless Volumetric Indoor Troffer, (2) Fluorescent/T5 Lamp, 71 W Fixture, 120 to 277 VAC, Steel Housing

Specifications

Application
Classroom, Conference Room, Hospital
Ballast_Type
Electronic
Brand Name
Lithonia Lighting
Color
White
Color_Temperature
3500
Country of Origin
MX
Dimensions
48.8 in L x 24.5 in W x 3.6 in H
Fixture_Finish
Gloss
Fixture_Material
STEEL
Fixture_Wattage
71
Housing_Material
Steel
Lamp_Type
Fluorescent/T5
Lamp_Wattage
28
Lumens
2730
Mounting
Recessed
Number_Of_Lamps
2
Socket_Type
Bi-Pin: Single
Special Features

  • 0.95 ballast factor
  • 1.15 ballast factor
  • Ballast tray may be removed from fixture during service
  • Bi-level dimming option allows system to be switched to 50% power for compliance with common energy codes while maintaining fixture appearance
  • Delivers volumetric lighting by filling the entire volume of space with light, providing the ideal amount to walls, cubicles, work surfaces and people
  • F24T5HO is available for higher ceiling applications
  • Lamps accessed by squeezing refractor to release from retention tabs
  • Luminous characteristics are carefully managed at high angles, distributing just enough intensity to deliver the volumetric effect
  • Side mounted ballast tray accessed by removing adjacent ceiling tile
  • Step level dimming option allows system to be switched to 50% power for compliance with common energy codes while maintaining fixture appearance
  • Two-lamp RT5 luminaire provides 33% energy savings when compared to a common three-lamp T8 system
  • Your choice of premium or premium XP T5 lamp with enhanced phosphors and 85 CRI, ballast/lamp efficacy upto 100+ LPW, lamp is TCLP compliant
Standard
UL
Sub_Brand
Lithonia Lighting
Type
Frameless Volumetric
Voltage Rating
120 to 277
Wattage
28
