3M 3M 7693-S-4-3G


Description

Industry Description

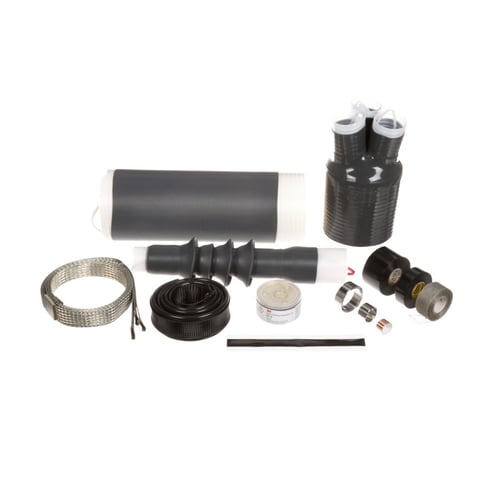

3M™ Cold Shrink QT III 7600 S 3G Series Termination Kit includes a skirted, 3 phase termination. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conjunction of high dielectric constant material and sealing compounds allows the termination to withstand voltages of 5 to 35kV.

Modified Industry Description

Outdoor 3 Conductor Termination Kit Cables

Specifications

Application
Outdoor
Brand Name
3M
Cable_Type
Tape Shield; UniShield(R); Wire Shield
Color
Black
Conductor Size
1 AWG; 1/0 AWG; 2/0 AWG; 250 kcmil; 3/0 AWG; 300 kcmil; 350 kcmil; 4/0 AWG; 400 kcmil; 500 kcmil
Country of Origin
US
Label_Description
3M(TM) COLD SHRINK QT-III, 3 CONDUCTOR TERMINATION KIT 7693-S-4-3G, 0.92-1.18 IN CABLE INSULATION O.D.
Material
Silicon Rubber
Number_Of_Pieces
3
Operating_Voltage
3
Package_Quantity
1
Special Features

  • 3 terminal
  • Conductor size by voltage (5 kV, 100%) 400-500 kcmil, (5 kV, 133%) 400-500 kcmil, (8 kV, 100%) 400-500 kcmil, (8 kV, 133%) 400-500 kcmil, (15 kV, 100%) 250-350 kcmil, (15 kV, 133%) 4/0 AWG-350 kcmil, (25/28 kV, 100%) 2/0 AWG-250 kcmil, (25/28 kV, 133%) 1-4/0 AWG
  • High dielectric constant material regulates the distribution of electric field stress
  • Integrated design allows for easier installation, while sealing compounds provide constant radial pressure
  • Provides a void free seal to tape shield, wire shield and UniShield® power cables
Standard
IEEE
Sub_Brand
3M
Type
Cold Shrink QT-III
Voltage Rating
892.857/5k/8k/15k
