Thomas & Betts Thomas & Betts 256-30695-886
Thomas & Betts 256-30695-886
Kirby Risk #: 2221551
UPC: 78621089675, 786210896755, 50786210896750
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Thomas & Betts
Description
Industry Description

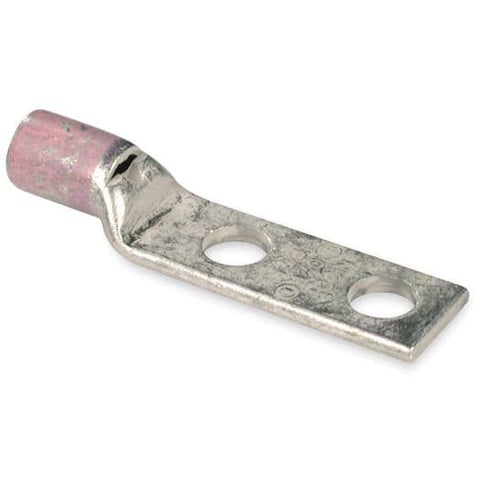

Copper Two-Hole Lug, Standard Barrel, Peep Hole, Max 35kV, Wire Size #1 Flex 225/24, 1/2 Inch Bolt Size, 1-3/4 Inch Hole Spacing, Tin Plated, Die Color Code Pink, Die Code 42
Modified Industry Description
COLOR KEYED-CU
AD Description
Color-Keyed® 256-30695-886 2-Hole Compression Lug, 1/0 AWG Flexible Copper Conductor, Die Code: 42, 1/2 in Stud, Copper
Vendor Description
The Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by T&B®. When using the Color-Keyed® compression system with our Blackburn® line of compression connectors, the installer can count on a reliable, high quality connection.
Specifications
| Brand Name |
Thomas & Betts
|
|---|---|
| Cable_Size |
1/0 AWG
|
| Color |
Pink
|
| Conductor Material |
Copper
|
| Conductor Size |
1/0
|
| Country of Origin |
MX
|
| Finish |
Tin Plated
|
| Insulation |
None
|
| Material |
Copper
|
| Number_Of_Holes |
2
|
| Package_Quantity |
10
|
| Special Features |
|
| Standard |
UL E9809
|
| Stud_Size |
1/2
|
| Sub_Brand |
Color-Keyed
|
| Tongue_Angle |
Straight
|
| Type |
2-Hole
|
| Voltage Rating |
600 VAC to 35 kV
|
