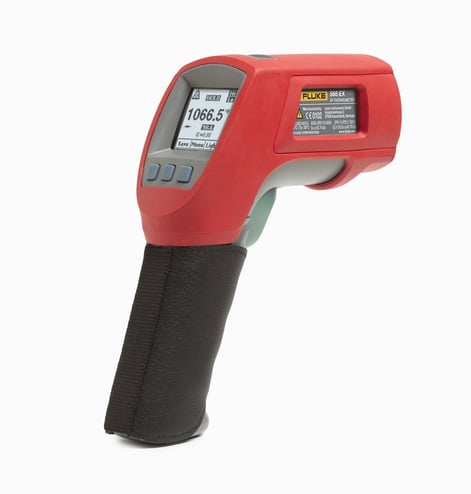

Fluke FLUKE 568


Description

Industry Description

568 Series Infrared And Contact Thermometer, Temperature Range: -40 To 800 DEG C, Accuracy: Less Than 0 DEG C (32 DEG F): Plus/Minus (1.0 DEG C (Plus/Minus 2 DEG F) Plus 0.1/1 DEG C or DEG F) Greater Than 0 DEG C (32 DEG F): Plus/Minus 1 PCT or Plus/Minus 1 DEG C (Plus/Minus 2 DEG F), whichever is greater, Resolution: 0.1 DEG C, Spectral Response: 8 - 14 MIC-MR, Laser Sighting: Single Point Laser Less Than 1 MILW Output Class 2 (II) Operation, 630 - 670 NMTR, Response Time: Less Than 500 MS, Emissivity: By Built-In Table Of Common Materials Or Digitally Adjustable From 0.10 To 1.00 By 0.01, Display: Dot Matrix 98 X 96 Pixels With Function Menus, Alarm: High/Low Audible And Two-Color Visual, Data Logging: Yes, Trigger: Lock Mechanism, Battery Type: (2) AA/LR6 And USB When Used With A PC, Laser And Backlight ON 12 HR Laser And Backlight Off 100 HR, Dimensions: 6.965 IN Height X 6.441 IN Length X 2.039 IN Width

Modified Industry Description

IR THERMOMETER

AD Description

Fluke® FLUKE-568 Infrared and Contact Thermometer, -40 to 1472 deg F, +/- 1% Accuracy, 1 in at 50 in Focus Spot, 0.1 to 1 micron, (2) AA/LR6 Battery

Vendor Description

The Fluke® 568 Infrared Thermometer is a combination contact and non-contact thermometer in one. It offers a wider temperature range than most other infrared thermometers while offering users more features controlled through an intuitive graphical display and menu. The simple, three-button on-screen menu interface (in 7 languages) is quick to use and makes even complex measurements easy. It takes just a few pushes of a button to adjust emissivity, record data, or turn on and off alarms. The 50:1 distance-to-spot ratio allows you to measure smaller objects from further away. And you can count on the rugged, ergonomic design to stand up to tough industrial, electrical, HVAC, and mechanical environments to help you work more efficiently in more applications.

Specifications

Accuracy
+/- 1%
Alarm
High/Low Audible And Two-Color Visual
Battery_Type
(2) AA/LR6
Brand Name
FLUKE
Country of Origin
UKN
Data_Logging
True
Display
Dot Matrix 98 X 96 Pixels With Function Menus
Emissivity
0.1 to 1
Laser_Sighting
Single Dot
Package_Quantity
1
Resolution
0.1
Response_Time
<500
Special Features

  • Allows easy access to advanced features with soft-key buttons and graphical display
  • Allows you to confidently measure a wide variety of surfaces with adjustable emissivity and a built-in materials table
  • Can be powered from your laptop via the USB to extend battery life
  • Captures up to 99 points of data for quick downloading to a PC through the USB connection
  • Contact and non-contact thermometer in one
  • Easily adapts to lighting conditions with a two-level backlight
  • Features rugged, ergonomic design that stands up to tough industrial, electrical, and mechanical environments
  • Includes FlukeView® Forms software for easy trending and data analysis
  • Instantly alerts to measurements outside of set limits with audible and visual alarms
  • Offers a distance-to-spot ratio of 50:1
  • Provides 1% measurement accuracy
  • Quickly identifies problems with MIN, MAX, AVG, and DIF functions
  • Works with most K-type thermocouples
Spectral_Response
8 to 14
Sub_Brand
Fluke
Temperature_Range
-40 to 800
Temperature_Rating
-40 to 1472
Trigger
Lock Mechanism
Type
568 Series Infrared And Contact Thermometer
