Panduit Panduit LCC750-12W-6

Name: Panduit LCC750-12W-6
Brand: Panduit
SKU: 2218281
Price: 79.56 USD
Availability: InStock

Panduit LCC750-12W-6

Kirby Risk #: 2218281

UPC: 07498379858, 074983798582, 30074983798583, 00074983798582

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Panduit

Description

Industry Description

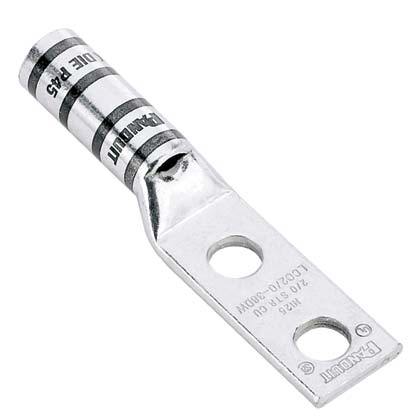

Two-hole, long barrel lug with window, 750 kcmil, 1/2 stud hole, 1.75 hole spacing.

Modified Industry Description

Copper Compression Lug, 2 Hole, 750

AD Description

Panduit® Pan-Lug™ LCC750-12W-6 LCC-W 2-Hole Compression Lug, 750 kcmil Copper Conductor, Die Code: P106, 1/2 in Stud, Tin Plated Copper

Brand Name	Panduit
Color	Black
Conductor Material	Copper
Conductor Size	750
Country of Origin	MEX
Material	Tin Plated Copper
Mounting	2 15/16
Number_Of_Holes	2
Package_Quantity	1
Size	750 kcmil Code
Special Features	Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection For use with stranded copper conductors Inspection window to visually assure full conductor insertion Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance Tin-plated to inhibit corrosion
Standard	CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, ABS approved, NEBS Level 3
Stud_Size	1/2
Sub_Brand	Panduit
Temperature_Rating	90
Type	2-Hole
Voltage Rating	35
