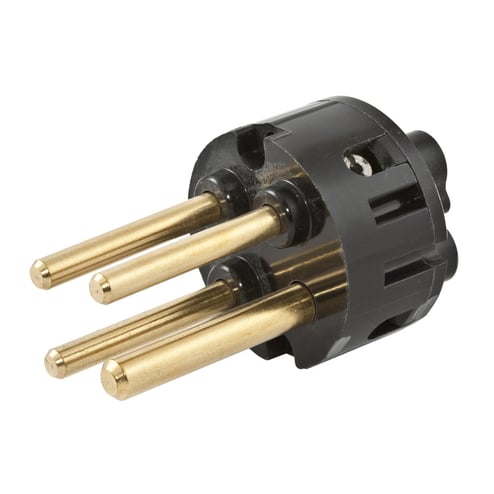

Hubbell Hubbell IN430DM
Hubbell IN430DM
Kirby Risk #: 2213454
UPC: 78358542025, 783585420257, 00783585420257
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Heavy Duty Products, IEC Pin and SleeveDevices, Industrial Grade, Male, Replacement Interior, For 30A250/480/600V 4-Wire, Furnished with Screws, Black Thermoset Polyester
Modified Industry Description
REPLACEMENT INTERIOR MALE 30A 4W
AD Description
Wiring Device-Kellems IN430DM Heavy Duty Male Standard Watertight Plug/Inlet Interior, 250/480/600 VAC, 30 A, 3 Poles, 4 Wires, Pressure Screw Connector
Specifications
| Amperage Rating |
30
|
|---|---|
| Application |
HBL430P9W, HBL430B9W, HBL430P7W, HBL430B7W, HBL430P5W, HBL430B5W, HBL432P6W, HBL432B6W, HBL432P3W, HBL432B3W
|
| Brand Name |
Hubbell
|
| Color |
Black
|
| Connection |
Pressure Screw Terminals
|
| Conductor Size |
#12AWG to #10AWG
|
| Country of Origin |
PR
|
| Environmental_Conditions |
Watertight When Installed
|
| Material |
Thermoplastic/Composite
|
| Mounting |
Screw Mount
|
| NEMA_Rating |
Non-NEMA
|
| Number_Of_Poles |
3
|
| Number_Of_Wires |
4
|
| Size |
Standard Sized Product
|
| Special Features |
|
| Standard |
UL 498, IEC 309-1 and 309-2
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
Replacement Female Interior
|
| Voltage Rating |
3 Phase 250
|
