Hubbell Hubbell 5352ABLK
Hubbell 5352ABLK
Kirby Risk #: 2209228
UPC: 78358510980, 783585109800, 00783585109800
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Straight Blade Devices, Receptacles,Duplex, Hubbell-PRO Grade, 2-Pole 3-Wire Grounding, 20A 125V,5-20R, Black, Single Pack
Modified Industry Description
RCPT, DUP SB, HUBPRO, 20A 125V, FG
AD Description

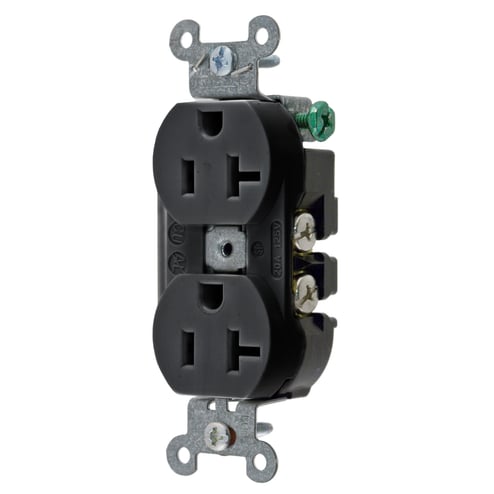

Wiring Device-Kellems 5352ABLK Duplex Grounding Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Black
Specifications
| Amperage Rating |
20
|
|---|---|
| Application |
Hubbell-Pro Heavy Duty
|
| Brand Name |
Hubbell
|
| Color |
Black
|
| Connection |
Back and Side Wired
|
| Conductor Size |
#14 AWG to #12 AWG
|
| Country of Origin |
CN
|
| Dielectric_Strength |
Withstands 2,000V minimum
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Grade |
Industrial
|
| Material |
Thermoplastic/Composite
|
| Mounting |
Screw Mount
|
| NEMA_Configuration |
5-20R
|
| NEMA_Rating |
5-20R
|
| Number_Of_Poles |
2-Pole
|
| Number_Of_Wires |
3-Wire Grounding
|
| Phase |
Single
|
| Size |
Standard Sized Product
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL 498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
Maximum continuous 75?°C; minimum -40?°C (w/o impact)
|
| Type |
Duplex
|
| Voltage Rating |
125
|
| Wattage |
2000Watts
|
