3M 3M 7663-S-8


Description

Industry Description

3M™ Cold Shrink QT III 7640 S, 7650 S & 7660 S Series Termination Kit includes a 1 piece, skirted termination. It ensures a pliable, tight seal for jacketed concentric neutral and concentric neutral power cables. The conjunction of high dielectric constant material and silicone rubber insulation allows the termination to withstand voltages of 5 to 35kV.

Modified Industry Description

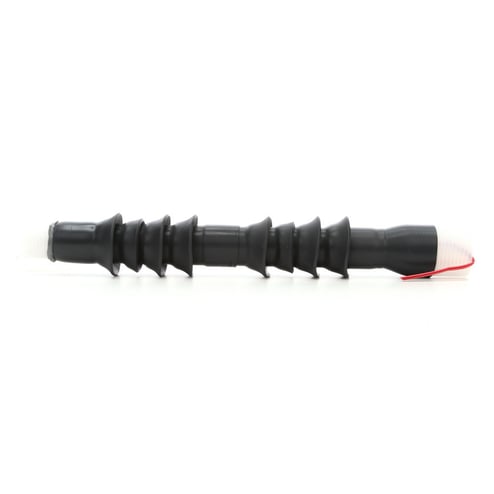

Cold Shrink 8 Skirt Termination

AD Description

3M™ 054007-42433 QT-III 7660-S Cold Shrink Insulated Termination Kit With High-K Stress Relief, For Use With Concentric Neutral and Jacketed Concentric Neutral Cable, Silicone Rubber

Vendor Description

3M™ cold shrink QT-III 7640-S, 7650-S and 7660-S series termination kit includes a 1-piece, skirted termination. It ensures a pliable, tight seal for jacketed concentric neutral and concentric neutral power cables. The conjunction of high dielectric constant material and silicone rubber insulation allows the termination to withstand voltages of 5 to 35 kV. 3M™ cold shrink QT-III 7640-S, 7650-S and 7660-S series termination kit is designed for terminating medium voltage power cables. The UV stable, track-resistant, silicone rubber insulation of the termination has a hydrophobic property and offers a long-lasting service life while minimizing leakage currents in wet conditions. The lower surface stress, high dielectric constant material offers an optimized BIL performance while ensuring a leak-proof, compact fit.

Specifications

Application
Outdoor
Brand Name
3M
Cable_Type
Concentric Neutral (CN); Jacketed Concentric Neutral (JCN)
Conductor Size
1 AWG; 1/0 AWG; 2 AWG; 2/0 AWG; 250 kcmil; 3/0 AWG; 300 kcmil; 350 kcmil; 4/0 AWG; 400 kcmil; 500 kcmil
Country of Origin
US
Label_Description
3M(TM) COLD SHRINK QT-III SILICONE RUBBER TERMINATION 7663-S-8, 0.72-1.29 IN (18,3-32,8 MM) CABLE INSULATION O.D.
Operating_Voltage
1
Package_Quantity
1
Special_Features

  • Accommodates wire sizes of 300 to 500 kcmil at 5 kV, 250 to 500 kcmil at 8 kV, 2/0 AWG to 300 kcmil at 15 kV, 2 to 4/0 AWG at 25/28 kV and 2 to 2/0 AWG at 35 kV
  • High dielectric constant material regulates the distribution of electric field stress
  • IEEE standard 48 class 1 approved for outdoor, weather exposed applications
  • Includes an 8-skirt, 1-piece, cold shrink termination
  • Provides a void-free seal to jacketed concentric neutral and concentric neutral power cables
  • Silicone rubber insulation offers durability and reduces leakage currents in damp conditions
  • Withstands voltages of 5 to 35 kV and is 200 kV BIL-rated

Standard
IEEE
Sub_Brand
3M
Type
QT-III
Voltage Rating
892.857/5k/8k/15k/35k
