Hubbell Hubbell 5352AR
Hubbell 5352AR
Kirby Risk #: 2206923
UPC: 78358512772, 783585127729, 00783585127729
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description

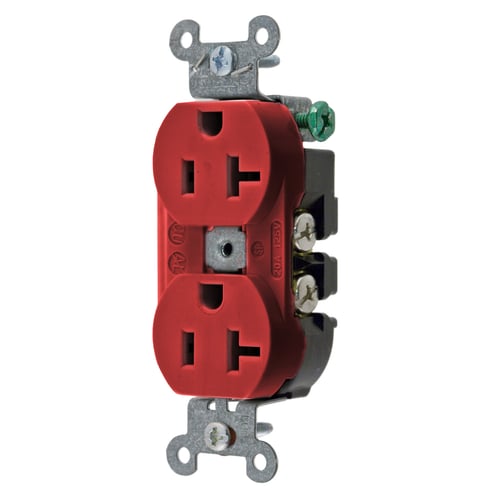

Hubbell Wiring Device Kellems, Straight Blade Devices, Receptacles,Duplex, Hubbell-Pro Commercial/Industrial Grade, 20A 125V, 2-Pole 3-WireGrounding, 5-20R, Red, Single Pack
Modified Industry Description
20A 125V 2P3W DUPL RECP RED
AD Description
Wiring Device-Kellems Hubbell-PRO 5352AR Duplex Heavy Duty Standard Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Red
Specifications
| Amperage Rating |
20
|
|---|---|
| Application |
Hubbell-Pro Heavy Duty
|
| Brand Name |
Hubbell
|
| Color |
Red
|
| Connection |
Back and Side Wired
|
| Conductor Size |
#14 AWG to #12 AWG
|
| Country of Origin |
CN
|
| Dielectric_Strength |
Withstands 2,000V minimum
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Grade |
Industrial
|
| Material |
Thermoplastic/Composite
|
| Mounting |
Screw Mount
|
| NEMA_Configuration |
5-20R
|
| NEMA_Rating |
5-20R
|
| Number_Of_Poles |
2-Pole
|
| Number_Of_Wires |
3-Wire Grounding
|
| Phase |
Single
|
| Size |
Standard Sized Product
|
| Special Features |
|
| Standard |
NEMA WD1 and WD5, UL 498
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Temperature_Rating |
Maximum continuous 75?°C; minimum -40?°C (w/o impact)
|
| Type |
Duplex
|
| Voltage Rating |
125
|
| Wattage |
2000Watts
|
