3M 3M 30045
3M 30045
Kirby Risk #: 2206769
UPC: 05400712584, 054007125846, 00054007125846
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: 3M
Description
Industry Description
The 3M™ Scotchlok™ Copper Lugs 30000 Series are one hole, standard barrel lugs from 6–4/0 AWG designed for terminating copper conductors. Each lug is tin plated to resist corrosion and can be installed with standard industry tools. Chamfered ends ensure ease of conductor insertion.
Modified Industry Description
Copper One-Hole Lug
AD Description

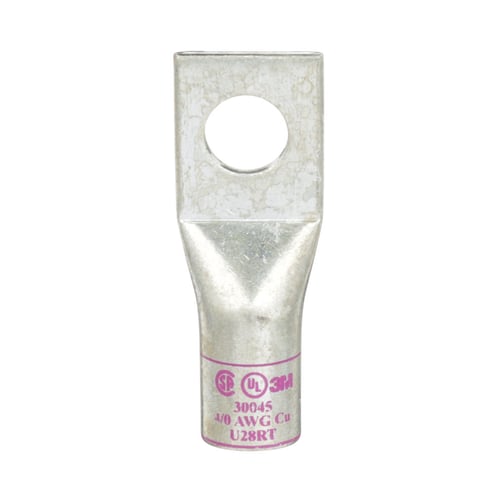

Scotchlok™ 30045 1-Hole Compression Lug, 4/0 AWG Conductor, 1/2 in Stud, Copper
Specifications
| Application |
Copper Conductor Only
|
|---|---|
| Brand Name |
3M
|
| Capacity |
1
|
| Color |
Purple
|
| Conductor Material |
Copper
|
| Conductor Size |
4/0 AWG
|
| Country of Origin |
CL
|
| Label_Description |
3M(TM) SCOTCHLOK(TM) COPPER ONE HOLE LUG 30045, PURPLE, 4/0 AWG, 10 PER CASE
|
| Material |
Copper
|
| Number_Of_Holes |
1
|
| Package_Quantity |
10
|
| Special Features |
|
| Standard |
UL Listed
|
| Stud_Size |
1/2
|
| Sub_Brand |
3M
|
| Type |
1-Hole
|
| Voltage Rating |
35 kV
|
