3M 3M 20007
3M 20007
Kirby Risk #: 2205335
UPC: 05400713293, 054007132936, 00054007132936
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: 3M
Description
Industry Description
The 3M™ Scotchlok™ Connectors 20000 Series can be used with either copper or aluminum conductors. These aluminum connectors feature color coded end caps for identification. Contact aid provided in connector is compatible with poly/EPR insulations. Each connector is electro tin plated to resist electrolytic corrosion, and have a solid center stop. (UL 486B Listed)
Modified Industry Description
Copper/Aluminum Connector
AD Description

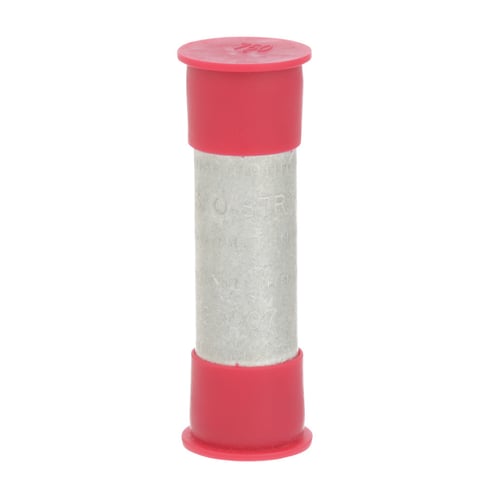

Scotchlok™ 054007-13293 Compression Splice Connector, 35 kV, 3/0 AWG Wire, Aluminum
Specifications
| Application |
Aluminum or Copper Conductors
|
|---|---|
| Brand Name |
3M
|
| Color |
Ruby
|
| Country of Origin |
US
|
| Label_Description |
3M(TM) SCOTCHLOK(TM) CU/AL CONNECTOR 20007, RUBY, 3/0 AWG, 10 PER CASE
|
| Material |
Aluminum
|
| Package_Quantity |
10
|
| Special Features |
|
| Standard |
UL
|
| Sub_Brand |
3M
|
| Type |
Compression
|
| Voltage Rating |
35 kV
|
