Panduit Panduit H1.5X2BL6


Description

Industry Description

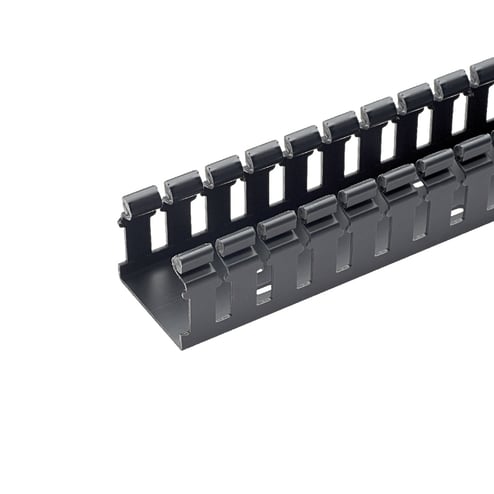

Panduct® type H hinged cover wide slot wiring duct, 1.5 W x 2 H, 6' length, PVC, black.

Modified Industry Description

SLOTTED HINGED

AD Description

Panduit® H1.5X2BL6 Type H Hinged Cover Slot Wall Wiring Duct, 0.31 in, 1-3/4 in W x 2 in D, Lead-Free PVC

Vendor Description

Panduit® innovative dual-sided hinged wiring duct delivers improved wire management and aesthetics for electrical control panel and communication applications. The unique push-on hinged cover is easier to install and remove than traditional wiring duct covers and once installed can be opened from either side of the duct. Hinged cover wiring duct provides faster access to wiring, prevents cover loss, reduces maintenance costs and promotes safety.

Specifications

Application
Hinged Cover Wide Slot Wiring Duct provides wire management in general purpose applications where it is beneficial to retain cover during wire changes
Color
Black
Connection
Mounting Holes
Country of Origin
USA
Length1
6
Material
Lead-Free PVC
Mounting_Type
Surface
Size
1.50 X 2.00
Special_Features

  • Cover retention flanges prevent cover from sliding when installed on duct base
  • Double scoreline saves installation time and lowers installed cost
  • Dual-sided hinge can open up to 100 deg from either sidewall of duct base for easy access to channel
  • Hinged Cover design with wide finger and slot design provides greater rigidity and allows use with a wide range of wire and bundle sizes
  • Integrated hinged cover design allows easy access to wiring without hassle of removing and reinstalling cover
  • Restricted slot design retains wire in slot for fast, easy wire installation or removal
  • Upper and lower scorelines allows easy finger and sidewall section removals

Standard
RoHS Compliant; cURus Recognized; CE Compliant; CSA Approved
Sub_Brand
Panduct?®
Type
Type H Hinged Cover
