Appleton Appleton ADR20033RS

Industry Description

Pin and Sleeve Receptacle, Type Polarized, Reverse Service, Constructional Feature Weatherproof, Water Resistant, Voltage Rating 600 VAC 3 Phase at 50 to 400 Hz, 250 VDC, Current Rating 200 Ampere, Number of Poles 3, Number of Wires 3, Grounding Style 1, Shell, Door Type Spring Door, Material Epoxy Powder Coated Copper-Free Aluminum, Grade Shipping, Approval UL 1682/1686/50E, CSA C22.2, Wire Size 2/0 to 250 MCM, Spring Material Brass with Beryllium Copper

Modified Industry Description

200A 600V 3 POLE 3 WIRE RECEPTACLE REVERSE SERVICE W/PINS

AD Description

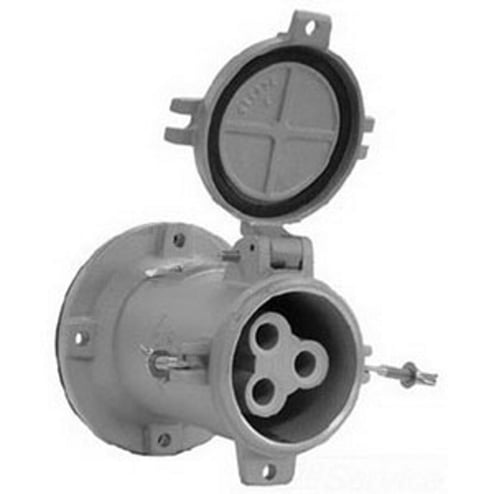

Appleton® Powertite® ADR20033RS 3-Phase S Grounding Style 1 Polarized Weatherproof Pin and Sleeve Receptacle With Flip Lid, Reverse Service, 600/250 VAC/VDC, 200 A, 3 Poles, 3 Wires

Vendor Description

Powertite® series plugs, connectors and receptacles use our versatile pin and sleeve design to provide safe, reliable power for any type of heavy duty equipment, fixed or portable. Available in 30, 60, 100, 150, 200 and 400 A designs, they feature widely spaced contacts recessed within an internal arc snuffing chamber, insulating blocks, positive polarization and a durable neoprene sealing bushing. Shell only or shell plus extra pole grounding provides safe, in make first, break last in grounding.
