Description

Industry Description

3M™ Rejacketing Sleeve provides reliable safety and protection to the phase legs of 3/C shielded, medium voltage power cables from termination operating environments. Incorporated with a silicone rubber insulator and polyester braid, this sleeve is resistant to UV rays, ozone, corrosion and moisture. It is designed for use with 3M Cold Shrink QT II and QT III, Silicone Rubber Terminations.

Modified Industry Description

Rejacketing Sleeve 4 ft coil

AD Description

3M™ RJS-2-4FT Rejacketing Sleeve, 4 ft L, Rubber, Dark Gray

Vendor Description

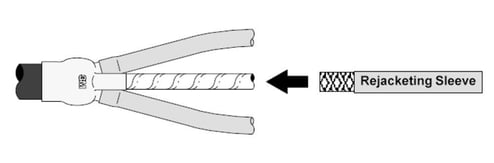

3M™ RJS Series rejacketing sleeves are designed so that 3M™ cold shrink QTII and QTIII silicone rubber termination applications can be used on 3/C (three conductor) medium voltage shielded power cables of tape shield, wire shield, armored and non-armored configurations. RJS rejacketing assemblies are a Series of silicone rubber insulators incorporating an inner expandable polyester braid designed to reduce sliding friction and deliver the insulator onto the cable. Rejacketing sleeves are designed to protect the phase legs (core) of 3/C shielded power cable from exposure to moisture, corrosion, ozone, ultra-violet radiation, physical contact and other hazards that are associated with termination operating environments. Rejacketing sleeves are designed to be used in conjunction with 3M™ cold shrink breakout boots and silicone rubber terminations.

Specifications

Application
Protect shielded phase legs after jacket has been removed in preparation for terminating
Brand Name
3M
Cable_Type
Sleeeve
Color
Dark Gray
Conductor Size
0.60 – 0.80
Country of Origin
US
Label_Description
3M(TM) REJACKETING SLEEVE RJS-2-4FT, 4 FT COIL, 10 PER CASE
Material
Rubber
Package_Quantity
10
Size
4 ft L
Special Features

  • 4 ft L linear
  • Accommodate cable sizes ranging from 8 AWG (8 sq-mm) at 3.3 kV, 750 kcmil (325 sq-mm) at 35 kV
  • Available in 6 sizes to cover cable metallic shield Dia ranging from 0.43 in (10.9 mm) to 1.91 in (48.5 mm)
  • Cold shrink QT-III and Q-TIII silicone rubber terminations can be used on 3/C (3-conductor) medium voltage shielded power cables of tape shield, wire shield, armored and non-armored configuration
  • Easy to adjust sleeve length adapts to variable equipment connection and mounting requirements
  • Excellent resistance to ozone and ultra-violet radiation
  • Excellent shelf life
  • Excellent thermal stability
  • Good solvent resistance compatible with industry approved cable cleaners
  • High dry and wet insulation resistance
  • No torches or heat source required
  • Rejacketing sleeves are designed to protect the phase legs (core) of 3/C shielded power cable from exposure to moisture, corrosion, ozone, ultra-violet radiation, physical contact and other hazards that are associated with termination operating environments
  • RJS Series sleeve assemblies can be field tested using normal cable testing procedures
  • Simple hand application no need for special installation tools
  • Used to protect shielded phase legs (cores) of 3/C medium voltage (35 kV and less) power cables after the jacket has been removed in preparation for terminating
  • Versatile installs quickly and accommodates a wide range of cable sizes
Sub_Brand
3M
Temperature_Rating
180
Type
Rejacketing Sleeve
