Thomas & Betts Thomas & Betts STEX300


Description

Industry Description

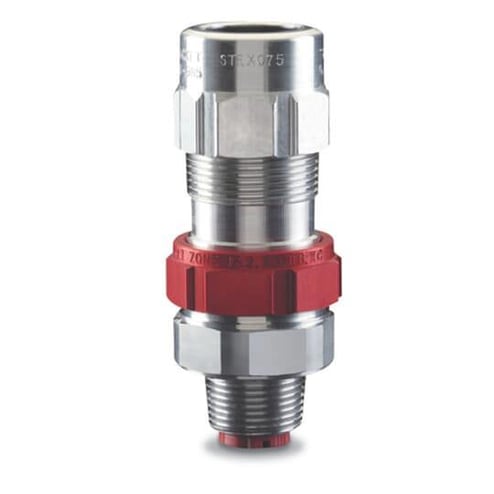

Star Teck Extreme hazardous location aluminum jacketed cable fitting. Hub size of 3 inch. Range over jacket from 2.265 - 2.840 inches.

AD Description

T&B® Fittings Star Teck Extreme XP® STEX300 STEX Cable Connector, 3 in Trade, 2.265 to 2.84 in Cable Openings, Aluminum

Vendor Description

Star Teck Extreme® fittings are designed to accommodate a broad range of cables. Each hub range overlaps the adjacent hub range, thereby minimizing the possibility of mismatched cables and fittings in the field. They are available in hub sizes from 1/2 to 4 in and will handle outer jacket diameters form 0.525 to 4.340 in.

Specifications

Application
For Hazardous Locations
Color
Silver/Red
Country of Origin
CA
Dimensions
5.1 in Dia x 6.61 in L
Length1
6.2500
Material
Aluminum
Series
STEX
Size
3
Special Features

  • 1600 in-lb gland torque
  • 2-1/2 in L strip
  • 2.075 in Dia throat with end stop
  • 2.105 to 2.68 in cable range over armor
  • 2.461 in Dia throat without end stop
  • 239 cc sealing compound required-liquid
  • Built-in jacket stripping gauge on gland nut
  • Form a mechanical grip and water and/or oil resistant seal for cord
  • Gland nut can be tightened with hammer and screwdriver
  • Patented elastomeric collar ring/bushing for greater cable ranges
  • Patented power grip grounding ring
  • Provide grounding continuity of cable armor
  • Provides means for passing armored, metal clad, jacketed cable through a bulkhead or enclosure in hazardous areas
  • Removable armor stop for greater cable ranges
Standard
UL E82038, CSA 23086
Sub_Brand
Star Teck
Type
Teck Cable Fittings
