Hoffman Hoffman PPB2128
Hoffman PPB2128
Kirby Risk #: 2185589
UPC: 78351023519, 783510235192, 00783510235192
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hoffman
Description
Industry Description
ProLine 200-mm Plinth Base, fits 1200x800mm, Black, Steel
Modified Industry Description
PLINTH BASE, 200MM
AD Description

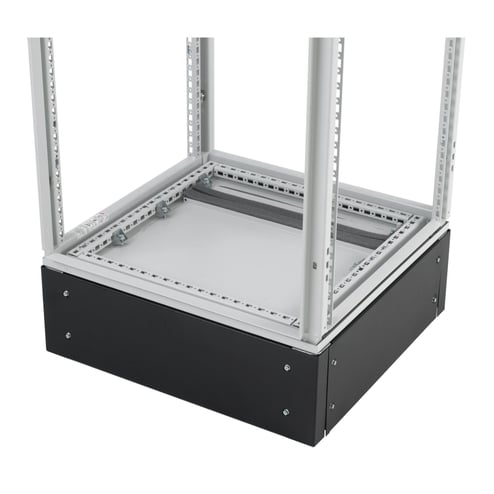

Hoffman ProLine™ PPB2128 P20 Plinth Base, 200 mm H x 1199 mm W x 759 mm D, For Use With ProLine™ 1200 x 800 mm Modular Enclosure Frames, Steel, Black
Vendor Description
Plinth Bases install under an enclosure to provide space for cables to enter from below. A Plinth Base consists of eight corner supports connected to four access panels. The corner supports are cast aluminum. The access panels are 16 gauge steel and attach to the corner supports with screws. Plinth Bases have are finished with RAL 9005 black textured polyester powder paint and include all necessary mounting hardware. Order a gland plate system to provide Type 12 protection when using a plinth base.
Specifications
| Application |
Controls and Drives; Power Distribution
|
|---|---|
| Color |
Black
|
| Country of Origin |
MX
|
| Finish |
Polyester Powder Painted
|
| Length1 |
50.5000
|
| Material |
Steel
|
| Series |
P20
|
| Size |
200 mm H x 1199 mm W x 759 mm D
|
| Special Features |
|
| Sub_Brand |
ProLine
|
| Type |
External Mounting for ProLine Industrial Enclosures
|
