Thomas & Betts Thomas & Betts DALB-3-CG


Description

Industry Description

1 Inch Threaded D-Pak Die Cast Aluminum Conduit Body-Back Opening, Cover and Gasket, For Use with Rigid/IMC Conduit

Modified Industry Description

1 IN THREADED ALUMINUM BODY, COVER AND GASKET

AD Description

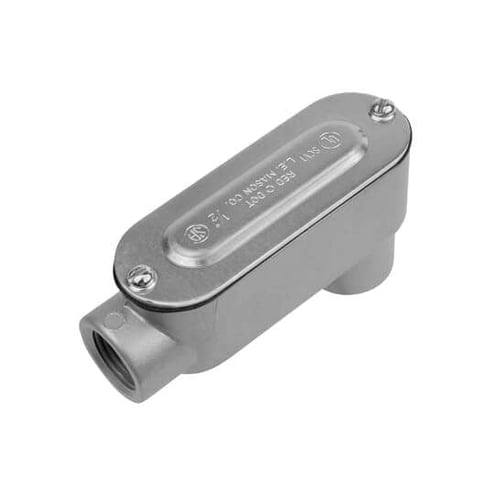

Red Dot® D-Pak™ DALB-3-CG A Series Type LB Conduit Body With Cover and Gasket, 1 in Hub, 11.8 cu-in Capacity, Die Cast Aluminum

Vendor Description

Preferred for more than 50 years, Red Dot® weatherproof and conduit body solutions withstand the harshest elements and ensure trouble free installation and years of superior performance.

Specifications

Application
For Use with Rigid/IMC Conduit
Brand Name
Thomas & Betts
Configuration
LB
Country of Origin
IN
Hub_Size
1
Material
Die Cast Aluminum
Special Features

  • Aluminum conduit bodies can be used with steel rigid conduit NEC 346-1 and steel EMT, NEC 348-1
  • Back access opening
  • Clean cover edges provide good gasket sealing
  • Clear UL, CSA and cubic content markings speed approval by inspectors
  • Combination packaging of conduit body, cover and gasket reduces handling and inventory costs
  • Copper-free aluminum provides increased corrosion-resistance
  • Precision cast and machined surfaces permit safer wire pulling
  • Precision NPT threaded and set screw hubs allow trouble-free field installation
  • Provide access for pulling, splicing and maintenance
  • Red Dot® quality in durable, die cast aluminum construction made to endure the elements
  • Retained deep slotted stainless steel cover screws for faster installation
  • See through wrapper provides instant identification and protects product on job site
  • Spacious, accessible wiring chamber provides a convenient location to pull conductors and make splices
Standard
E 28688
Sub_Brand
Red Dot
Trade_Size
1
Type
Type LB
Width_2
11.1300
