O-Z/Gedney O-Z/Gedney EL950


Description

Industry Description

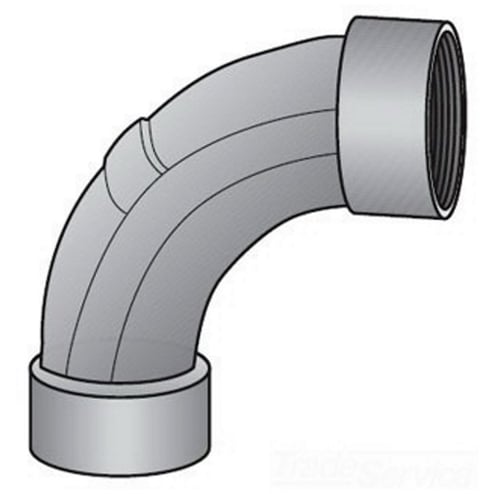

OZ-Gedney Type EL-9 90 DEG Conduit Elbow, Malleable Iron, Finish: Zinc Electroplated, Trade Size: 1/2 IN, Connection: Tapered FNPT Hub, Dimension A: 1-1/2 IN, 3/4 IN Turning Radius, Third Party Certification: UL 34997, Hazardous Locations: Class I,

Modified Industry Description

1/2 IN COND ELB HAZ LOC

Specifications

Application
For Threaded Rigid Conduit And IMC
Connection
Tapered FNPT Hub
Country of Origin
MX
Dimensions
1-1/2 in L
Finish
Zinc Electroplated
Length1
6.9000
Material
Malleable Iron
Special Features

  • Accurately tapped, tapered NPT threads for tight, rigid joints and ground continuity
  • Explosion proof and dust-ignition proof
  • Provide a 90 deg change of direction in a conduit run
  • Smooth, rounded integral bushing in each hub protects conductor insulation
Standard
Third Party Certification: UL 34997, Hazardous Locations: Class I, Division 1, 2, Groups A, B, C, D, Class I, Zone 1, 2, Groups IIA, IIB, IIC, Class II, Division 1, 2, Groups E, F, G, Class III, CSA 009795, Applicable Third Party Standards: UL 514B And 886, CSA C22.2 Number 30, NEC Articles 500-503 And 505, Military Specification Mil-F-28675
Type
Type EL-9
