Panduit Panduit LCAF500-58-6


Description

Industry Description

One-hole, flared barrel, 500 kcmil cable, 5/8 stud hole.

Modified Industry Description

COPPER COMPRESSION LUG, 1 HOLE, 500

AD Description

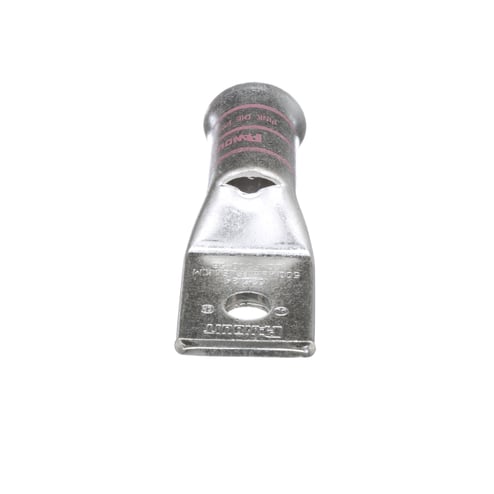

Panduit® Pan-Lug™ LCAF500-58-6 1-Hole Compression Lug, 500 kcmil Class K, M and 535.3 kcmil DLO Copper Conductor, Die Code: P99, 5/8 in Stud, Tin Plated Copper

Specifications

Brand Name
Panduit
Color
Pink
Conductor Material
Copper
Conductor Size
500 kcmil Class K, M and 535.3 kcmil DLO
Country of Origin
MEX
Material
Tin Plated Copper
Mounting
2 5/16
Number_Of_Holes
1
Package_Quantity
1
Size
500 kcmil Class K and M and 535.3 kcmil DLO
Special Features

  • Can be used with flex conductor class K, M and diesel locomotive
  • Color-coded bands for proper die selection and crimp placement
  • Flared entry prevents bent back strands when inserting fine strand conductor into barrel
  • Inspection window to assure complete conductor insertion
  • Tin-plated to inhibit corrosion
Standard
UL Listed to 486A-486B File #E52164, NEBS Level 3, ABS
Stud_Size
5/8
Sub_Brand
Panduit
Temperature_Rating
90
Type
1-Hole
Voltage Rating
35
