General Cable General Cable CP5.30.05


Description

Industry Description

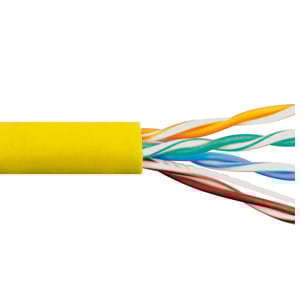

Carol® Helix/High Temp Category 5e Cable, Enhanced Transmission Throughput, CAROL C5E CMP Yellow 1M'PP

Modified Industry Description

Helix Cat 5e Plenum Yellow

AD Description

General Cable® Carol® Helix/Hi-Temp® CP5.30.05 Type CMP Cat 5e Plenum Cable, (4-Pair) 24 AWG Annealed Solid Bare Copper Conductor, 1000 ft Pull-Pac® II L

Vendor Description

General Cable® Carol® brand is the right solution for alarm and security wire and cable. Carol® offers as broad an offering as anyone in the industry. There are seven basic areas where alarm and security cables are used. General Cable® has the right product to serve every application, including: access control, video Surveillance/CCTV, component video, lighting control & touch Panel systems, fire alarm & life safety, home theater and Burglar Alarms. Our alarm and security cables offer solutions in all major security applications markets, including: commercial buildings; residential housing; business & office campus environments; public stadiums & arenas; airport, train, bus and other transportation hubs; and schools, colleges & universities. Whatever the security application need calls for, General Cable® has a cable that delivers the performance you need.

Specifications

Application
IEEE 802.3: 1000 BASE-T (Gigabit Ethernet), 100 BASE-TX, 10 BASE-T, 52/155 Mp/s ATM, ANSI X3.263: 100 Mb/s, 4/16 Mp/s token ring
Brand Name
General Cable
Color
Yellow
Conductor Size
24
Country of Origin
USA
Insulation_Material
Fluoropolymer
Jacket_Material
Fluoropolymer
Number Of Conductors
8
Resistance
8.9
Special Features

  • 0 to 60 deg C installation temperature
  • 1 in minimum bend radius
  • 100 +/- 15 Ohm at 1 to 100 MHz frequency characteristic impedance
  • 14 pF/ft at 1 kHz mutual capacitance
  • 25 lb maximum pulling force
  • 3% maximum individual pair DC resistance unbalance
  • 45 ns/100 m maximum delay skew
  • 72% speed of light nominal velocity of propagation
  • Enhanced transmission throughput
  • Low smoke, flame-retardant PVC jacket
  • Ripcord applied longitudinally under jacket
  • TRU-Mark® print legend contains footage marking from 1000 to 0 ft
Sub_Brand
General Cable
Temperature_Rating
-20 to 75
Type
Type CMP Cat 5e
