General Cable General Cable CR5.30.03

Name: General Cable CR5.30.03
Brand: General Cable
SKU: 2178635
Price: 0.21 USD
Availability: InStock

General Cable CR5.30.03

Kirby Risk #: 2178635

UPC: 07940768644, 079407686445, 00079407686445

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: General Cable

Description

Industry Description

CarolÂ® Helix/High Temp Category 5e Cable, Enhanced Transmission Throughput, CAROL C5E CMR Red 1M'PP

Modified Industry Description

Carol Helix Cat 5e Riser Red

AD Description

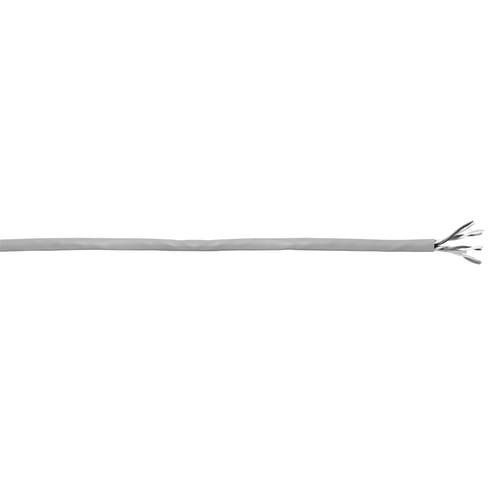

General Cable® Carol® Helix/Hi-Temp® CR5.30.03 Type CMR Cat 5e Non-Plenum Cable, (8) 24 AWG Annealed Solid Bare Copper Conductor, 1000 ft Pull-Pac® L

Application	IEEE 802.3: 1000 BASE-T (Gigabit Ethernet), 100 BASE-TX, 10 BASE-T, ANSI/TIA 854: 1000 BASE-TX, 155 Mp/s 1.2Gb/s ATM, ANSI X3.263: 100 Mb/s, IEEE 802.3af for DTE Power (PoE), IEEE 802.3at for PoE Plus, Digital Video, Broadband & Baseband Analog Video
Brand Name	General Cable
Color	Red
Conductor Size	24
Country of Origin	USA
Insulation_Material	PVC
Jacket_Material	PVC
Number Of Conductors	8
Resistance	8.9
Special Features	8.9 Ohm/100 m at 20 deg C DC resistance Enhanced transmission throughput cable Flame-retardant PVC jacket Ripcord applied longitudinally under jacket TRU-Mark® print legend contains footage marking from 1000 to 0 ft
Sub_Brand	General Cable
Temperature_Rating	-20 to 75
Type	Type CMR Cat 5e
