3M 3M 5382


Description

Industry Description

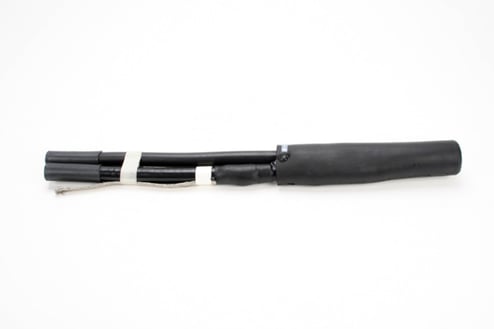

3M™ Motor Lead Pigtail Splicing Kits 5380 Series are designed for splicing motor lead cables to incoming feeder cables. These kits are removable and reusable. These kits can accommodate pigtail (stub) connections, 5/8 kV shielded and non-shielded feeders. The splice’s main component, the slip-on splice cover, is made from EPDM rubber. Mastic is used for the moisture seal on the pigtail kits. The kits utilize a high dielectric constant (K) stress control termination for the feeder cable’s electrical stress control.These kits are designed to be used with copper compression lugs. After being crimped onto the cables, the lugs are bolted together, then insulated and sealed with the 3M Motor Lead Splicing Kits. Each kit contains all the necessary materials (except lugs) needed to make three splices. The lugs must be purchased separately. 3M™ Scotchlock™ Copper Compression Lugs 30000 Series, or other UL listed copper lugs, can be used. Kit contents include:• (3) Lug covers • (3) Cold Shrink terminations • (12) Mastic sealing strips • (3) Copper tape strips • (3) Cleaning kits • (6) Tubes of silicone grease • (3) Cold Shrink jacket tubes • (3) Constant force springs • (3) Cable ties • (3) Ground straps • (1) Instruction sheet

Modified Industry Description

Motor Lead Splicing Kit, 4 TO 1/0 AWG MOTOR LEAD, 2 TO 1/0 AWG FEEDER

AD Description

3M™ 5382 5380 Pigtail Motor Lead Splice Kit, 5/8 kVAC, 4 to 1/0 AWG Conductor, 2-3/4 in L Splice, EPDM

Vendor Description

3M™ 5380 Series Motor Lead Pigtail Splice Kit is designed for splicing motor lead cables to incoming feeder cables. This kit makes use of high dielectric-constant stress-control termination for feeder cables to reduce the size and electrical stress. It is rated for 5/8 kV-rated applications. The kit accommodates shielded and non-shielded cables.

Specifications

Brand Name
3M
Cable_Size
2. - 0
Color
Black
Country of Origin
US
Label_Description
3M(TM) MOTOR LEAD PIGTAIL SPLICING KIT 5382
Number_Of_Cables
3
Sub_Brand
3M
Type
Pigtail
Voltage Rating
625
