3M 3M 5415A


Description

Industry Description

3M™ Cold Shrink QS-III Inline CN/JCN Cable Splices 5456A-WG, 5457A-WG and 5458A-WG are inline splices for joining 25/28 kV jacketed concentric neutral (JCN) or concentric neutral (CN) power cables. It is a cold shrink design.

Modified Industry Description

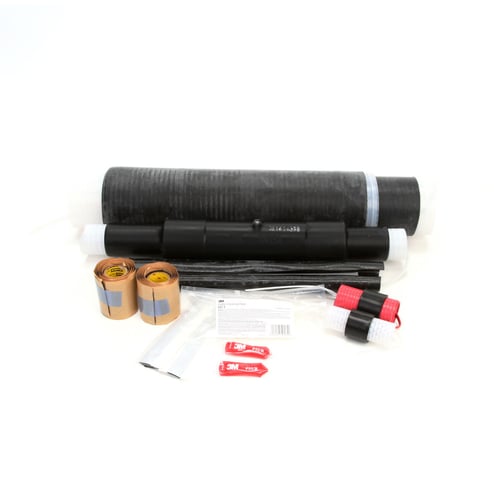

QSIII Splice Kit

AD Description

3M™ 051128-53470 5415A Cold Shrink QS-III Splice Kit, 15 kVAC, 2, 1, 1/0, 2/0, 3/0, 4/0 AWG Conductor, 28 in L Splice, Silicon Rubber

Vendor Description

3M™ 5415A Series Cold Shrink QS-III Splice Kit is a 15kV class inline splice designed to join jacketed concentric neutral (JCN) and concentric neutral (CN) power cables. The cold shrink design fits type MV-90 cables with copper or aluminum conductors while ensuring a quick installation and excellent cable size transitions.

Specifications

Brand Name
3M
Cable_Type
Concentric Neutral/Jacketed Concentric Neutral
Color
Black
Conductor Material
Aluminum; Copper
Conductor Size
2 AWG, 1 AWG, 1/0 AWG, 2/0 AWG, 3/0 AWG, 4/0 AWG
Country of Origin
US
Functions
None
Label_Description
3M(TM) COLD SHRINK QS-III SPLICE KIT 5415A, 2-4/0 AWG (35-95 MM2), 1 PER CASE
Material
Silicon Rubber
Package_Quantity
1
Special Features

  • 0.4 to 1.06 in OD connector
  • 1/0 AWG, 2/0 AWG, 1 AWG, 3/0 AWG, 2 AWG, 4/0 AWG conductor size
  • 1/case
  • 1090 psi tensile strength
  • 370 V/mil dielectric strength
  • 4-1/2 in aluminum/copper compression length, 5 in copper compression length, 4.41 in shear bolt connector length
  • 610% elongation
  • Factory tested partial discharge and AC ensure reliability
  • In-line splice for joining jacketed concentric neutral (JCN) and concentric neutral (CN) power cables
  • Polyolefin foam, copper conductor
  • Silicon rubber splice body provides good high and low temperature performance and the EPDM rubber jacket offers physical protection
  • Special electrode design of the kit reduces the electrical stress at a critical cable/splice interface
Sub_Brand
3M
Temperature_Rating
105 to 140
Type
Cold Shrink QS-III
Voltage Rating
15
