NSI NSi C-3/0
NSI C-3/0
Kirby Risk #: 2168460
UPC: 66238103757, 662381037572, 00662381037572
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: NSI
Description
Industry Description

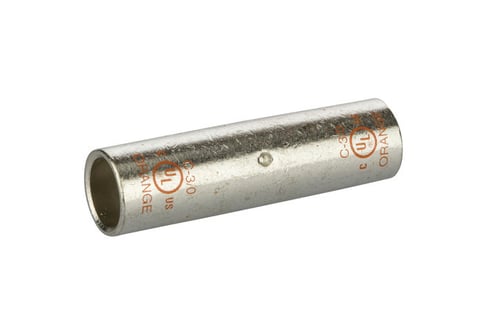

Long Barrel TinnedCopperSplice 3/0 AWG Long Barrel Tinned CopperSplices is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
Modified Industry Description
#3/0 CU COMPRESION SPLICE
AD Description
NSI C-3/0 Dual Rated Compression Splice, 3/0 AWG Conductor, 2-1/4 in L, Long Barrel, Copper, Orange
Specifications
| Application |
Terminate, Splice, Tap Power Connectors
|
|---|---|
| Brand Name |
NSi
|
| Color |
Orange
|
| Conductor Range |
3/0 AWG (STR)
|
| Conductor Type |
Stranded Copper
|
| Conductor Size |
3/0
|
| Country of Origin |
IND
|
| Finish |
Tin Plated
|
| Material |
Copper
|
| Number_Of_Poles |
1
|
| Package_Quantity |
1
|
| Size |
L=2.25 - OD=.620 - ID=.490
|
| Special Features |
|
| Standard |
UL486
|
| Sub_Brand |
NSi
|
| Temperature_Rating |
90
|
| Type |
Dual Rated
|
| Voltage Rating |
600
|
