TPI TPI CBT30B3


Description

Industry Description

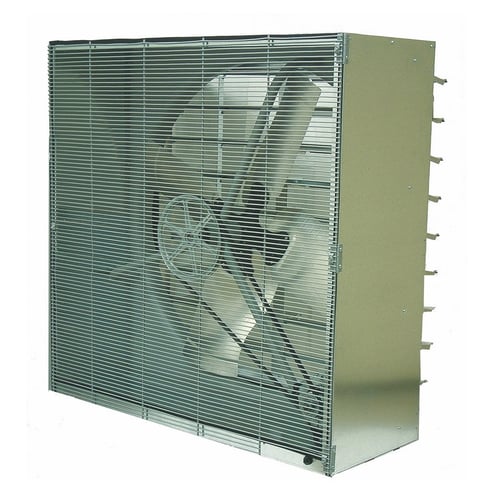

30 IN Cabinet Exhaust Fan, Flow Rate- 7730 CFM, 230/460 V, 3 PH, 1.9/0.9 AMP, Fan Speed- 1725 RPM, Mounting-Cabinet, AC Motor, Shaft Diameter- 5/8 IN, Steel Housing Material, Galvanized (Housing)

Modified Industry Description

30IN Cabinet Belt Drive Exhaust Fan

AD Description

TPI CBT30B3 3-Phase Standard Cabinet Exhaust Fan With Shutter, 230/460 VAC, 1.9 A, 0.9 A, 30 in Propeller, 1/3 hp, Domestic

Specifications

Air_Flow
7730
Amperage Rating
1.9 A, 0.9 A
Application
Indoor-Industrial
Blade_Material
Aluminum
Brand Name
TPI
Country of Origin
US
Fan_Speed
1725
Finish
Galvanized (Housing);Powder Coated (Venturi)
Flow_Rate
7730
Horsepower
1/3
Housing_Material
Steel
Model
CBT30B3
Motor_Type
AC
Mounting
Cabinet
Phase
3
Propeller_Material
Aluminum
Shaft_Diameter
5/8 IN
Size
30 IN
Special_Features

  • 18 ga galvanized steel housing
  • 20 ga powder coated venturi
  • 3-Phase, ball bearing, permanently lubricated, drip proof motor
  • 5/8 in Dia shaft
  • Aluminum blade
  • Aluminum shutter
  • Permanently lubricated bearings on blade drive shaft
  • Ships fully assembled

Standard
UL Listed;OSHA
Sub_Brand
TPI
Type
3-Phase Standard
Voltage Rating
230/460
