Southwire Southwire MC/AL-STR-12-2 W/G-CU-1000 FT

Name: Southwire MC/AL-STR-12-2 W/G-CU-1000 FT
Brand: Southwire
SKU: 2164936
Price: 1.21 USD
Availability: InStock

Southwire MC/AL-STR-12-2 W/G-CU-1000 FT

Kirby Risk #: 2164936

UPC: 03288604344, 032886043444, 00032886043444

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Southwire

Description

Industry Description

12-2 STR CU THHN BROWN/GRAY/GREEN AIA MC 600V 1000 FT

Modified Industry Description

MC CABLE, STRANDED, 12 AWG, 2 CONDUCTORS, 1000 FT

AD Description

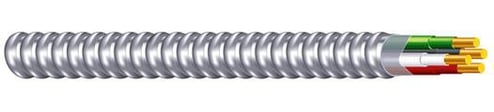

Southwire® Armorlite® 55111002 Type MC THHN Building Wire, 600 VAC, (2) 12 AWG Stranded Copper Conductor, 1000 ft L, Brown/Gray/Green

Amperage Rating	20
Brand Name	Southwire
Conductor Material	Copper
Conductor Type	Stranded Copper
Conductor Size	12
Country of Origin	USA
Insulation_Material	PVC
Jacket_Material	Aluminum
Number Of Conductors	2
Outside_Diameter	0.49448
Package_Quantity	1000
Special Features	Aluminum interlocking armor is applied over the assembly Anti-short bushings are not required for use with mc cable per the NEC and UL Branch, feeder and service power distribution in commercial, industrial, institutional and multi-residential buildings Cable reverse wound on reel for ease of pulling and installation Class I Div. 2, class Ii div 2 and class III Div. 1 hazardous locations Concealed or exposed installations Fished or embedded in plaster Installation in cable tray and approved raceways Lightweight aluminum armor as much as 45% lighter than steel mc cable Power, lighting, control and signal circuit Reduces installation costs up to 50% over pipe and wire Under raised floors for information technology equipment conductors and cables per NEC 645.5(D) and 645.5(D)(2)
Sub_Brand	Southwire
Type	Type MC
Voltage Rating	600
