Bussmann Bussmann 16378-3


Description

Industry Description

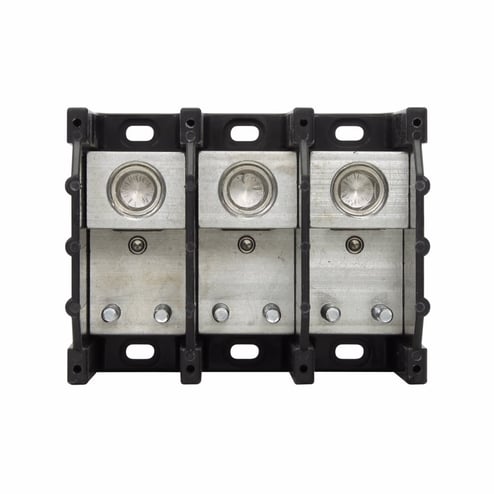

380A 600V Connector to Stud 3 Pole Power Terminal Block

Modified Industry Description

TERMINAL BLOCK 3P 380A 600V CONN TO STUD

AD Description

Bussmann 16378-3 Barrier Connector to Stud Power Distribution Block, 600 VAC/VDC, 380 A, 3 Poles, 6 AWG to 500 kcmil Wire, Thermoplastic

Vendor Description

Bussmann series UL Recognized power distribution blocks offer a variety of lineside and load side port configurations to provide greater flexibility in panel wiring and wire management. These blocks are UL Recognized to UL 1059 and rated for use in UL 508A industrial control panels. Blocks are factory configured in 1-, 2 and 3-pole versions and have optional covers to enhance safety (order covers separately).

Specifications

Amperage Rating
380
Application
Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
Brand Name
Bussmann
Color
Black
Connection
(2) 1/4 In-20 TPI X 1 In Stud (Load)
Country of Origin
MX
Finish
Tin Plated
Material
Thermoplastic
Number_Of_Poles
3
Size
5.21 In Length X 4.00 In Width X 3.32 In Height
Special Features

  • (1) screw primary, (2) stud secondary
  • (2) 1/4-20 x 1 stud load
  • 6 AWG to 500 kcmil copper/aluminum line wire
  • 6 AWG to 500 kcmil copper/aluminum line, 1/4-20 x 1 in stud load connection
  • Dual wire applications are only viable when using two wires of the same size, stranding and insulating and conductor material in the same port
  • Ferrule applications allow for the use of a broader range of conductor stranding and simulate a more efficient, solid wire connection with the terminal port
  • Molded thermoplastic base, tin plated aluminum connector
  • Rated for dual wire port application to increase the possible number of lineside and loadside connections
  • SMD/SMT style mounting
Standard
UL, CSA
Sub_Brand
Cooper Bussmann
Type
Barrier/Connector to Stud
Voltage Rating
600
