Southwire Southwire MC/AL-PVC-SOL-12-2 W/G-CU-250 FT

Name: Southwire MC/AL-PVC-SOL-12-2 W/G-CU-250 FT
Brand: Southwire
SKU: 2161884
Price: 2298.63 USD
Availability: InStock

Southwire MC/AL-PVC-SOL-12-2 W/G-CU-250 FT

Kirby Risk #: 2161884

UPC: 03288603119, 032886031199, 00032886031199

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Southwire

Description

Industry Description

12-2 SOL CU THHN BLACK/WHITE/GREEN AIA MC BLACK JKT 250 FT

Modified Industry Description

MC PVC, SOLID, 12 AWG, 2 CONDUCTORS, 250 FT

AD Description

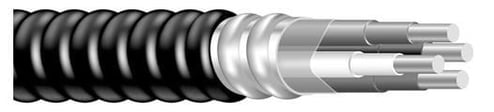

Southwire® Armorlite® 61005001 Type MC Armor Cable, 600 VAC, (2) 12 AWG Bare Solid Copper Conductor, 250 ft L

Brand Name	Southwire
Conductor Material	Copper
Conductor Type	Bare Solid Copper
Conductor Size	12
Country of Origin	USA
Jacket_Material	PVC
Number Of Conductors	2
Outside_Diameter	0.5746
Package_Quantity	250
Special Features	A black sunlight resistant, flame retardant PVC jacket is applied over the armor Aluminum interlocking armor is applied over the assembly Anti-short bushings are not required for use with mc cable per the NEC and UL Cable reverse wound on reel for ease of pulling and installation, when pulling from coils, pull from inside to ensure ease of installation Green insulated grounding conductor Lightweight aluminum interlocked armor with overall PVC jacket Print legend is included on the binder tape as well as the overall PVC jacket Reduces installation costs up to 50% over pipe and wire Sizes AWG 14 through AWG 2 rated vw-1 Southwire Armorlite® type mc cable - PVC jacketed is constructed with soft-drawn, copper type THHN/THWN conductors rated 90 deg C dry/ 75 deg C wet and a green insulated grounding conductor Sunlight resistant The conductors are cabled together and a binder tape is wrapped around the assembly The jacket is available in other colors upon request subject to economic order quantities THHN/THWN insulated singles
Sub_Brand	Southwire
Type	Type MC
Voltage Rating	600
