TPI TPI ACU30W
TPI ACU30W
Kirby Risk #: 2160672
UPC: 686334796293, 68633479629, 00686334796293
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: TPI
Description
Industry Description
Industrial Unassembled Circulator, Standard, Size- 33.5 IN, Blade Size- 30 IN, CFM 4300 (High) 3800 (Low) , 1/4 HP, 2.7 AMP, Speed- 800 (Low), 1100 (High) RPM, 120 V, 2 Speeds, Wall Mounting
Modified Industry Description
30 IN Unassembled Standard Ind Fan
AD Description

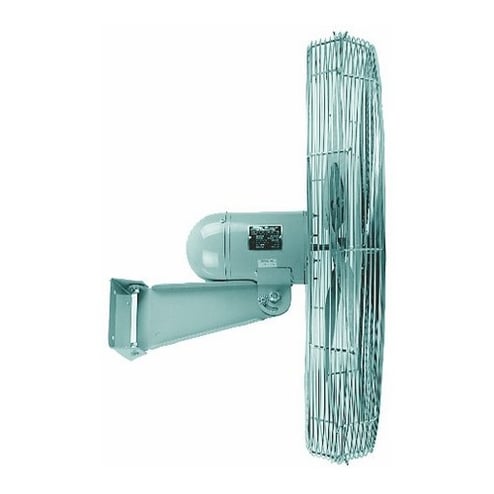

TPI ACU30W 1-Phase Standard Unassembled Air Circulator, 30 in Blade, 4300 cfm High/3800 cfm Low Flow Rate, 120 VAC, 2.7 A
Specifications
| Amperage Rating |
2.7
|
|---|---|
| Application |
Indoor-Industrial/Commercial
|
| Blade_Material |
Aluminum
|
| Blade_Size |
30
|
| Brand Name |
TPI
|
| Country of Origin |
US
|
| Drive_Type |
Motor
|
| Flow_Rate |
4300 cfm High, 3800 cfm Low
|
| Horsepower |
1/4
|
| Housing_Material |
Steel
|
| Maximum_Depth |
14.5
|
| Model |
ACU30W
|
| Motor_Type |
Split Capacitor
|
| Mounting |
Wall
|
| Number_Of_Speeds |
2
|
| Phase |
1
|
| Shaft_Diameter |
1/2 IN
|
| Size |
33.5 IN
|
| Special Features |
|
| Speed |
1100 rpm High, 800 rpm Low
|
| Standard |
cETLus Listed;OSHA
|
| Style |
Paddle Blade
|
| Sub_Brand |
TPI
|
| Type |
1-Phase Standard Unassembled
|
| Voltage Rating |
120
|
