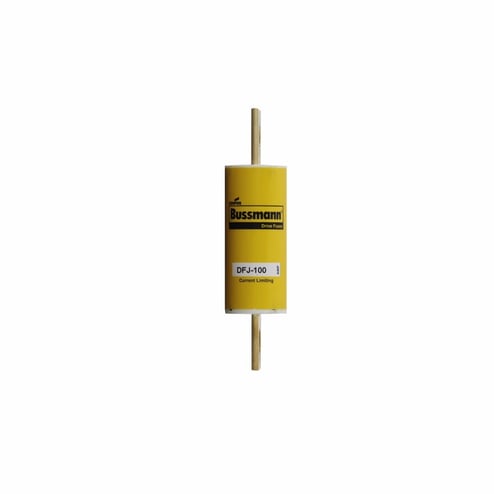

Bussmann Bussmann DFJ-100
Bussmann DFJ-100
Kirby Risk #: 2160582
UPC: 05171265341, 051712653411, 00051712653411
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Bussmann
Description
Industry Description
100AMP 600V J HIGH SPEED FUSE
Modified Industry Description
100A 600V - J DRIVE FUSE
AD Description
Bussmann DFJ-100 Current Limiting High Speed Drive Fuse, 100 A, 600 VAC/450 VDC, 200/100 kA, Class J, Cartridge Body
Vendor Description
The Bussmann series DFJ drive fuse is a high speed, current limiting fuse that provides maximum protection for AC and DC drives and controllers and meet NEC® branch circuit protection requirements. The drive fuse has the lowest I2t of any branch circuit fuse to protect power semiconductor devices that utilize diodes, GTOs, SCRs and SSRs.
Specifications
| Amperage Rating |
100
|
|---|---|
| Application |
Protection of AC and DC Drives, Power Semi-Conductor Devices
|
| Brand Name |
Bussmann
|
| Characteristics |
High Speed
|
| Connection |
Blade End X Blade End
|
| Country of Origin |
MUL
|
| Element |
Single
|
| Interrupt_Rating |
200/100
|
| Material |
Melamine
|
| Model |
DFJ
|
| Package_Quantity |
1
|
| Size |
1.13 In Diameter X 4.63 In Length
|
| Special Features |
|
| Standard |
UL 248-8, CSA C22.2, CE
|
| Sub_Brand |
Cooper Bussmann
|
| Type |
Current Limiting High Speed
|
| Voltage Rating |
600 VAC/450 VDC
|
