Appleton Appleton LB400DCG
Appleton LB400DCG
Kirby Risk #: 2159174
UPC: 68785500132, 687855001323, 00687855001323
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Appleton
Description
Industry Description
EMT Conduit Bodies, Aluminum Threaded for rigid conduit and IMC, Series: LB, Set Screw, Material: Conduit body: diecast, copperfree aluminum/epoxy powder coat, Cover: stamped aluminum, natural finish, Gasket: neoprene, UL Standard: 514A, Trade Size: 4
Modified Industry Description
THREADED AIO CONDUIT BODY
AD Description

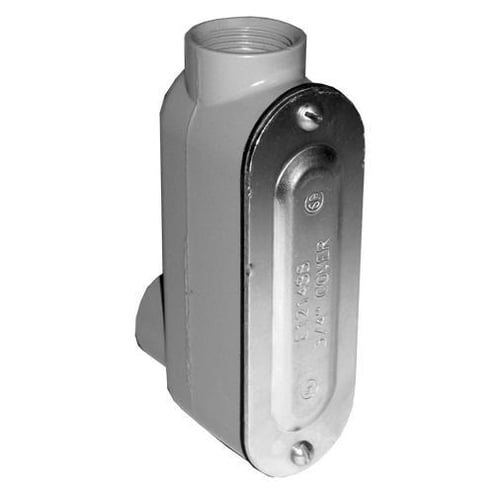

Appleton® NEER™ LB400DCG Type LB Conduit Outlet Body With Cover and Gasket, 1-1/4 in Hub, 308 cu-in, Die Cast Aluminum, Epoxy Powder Coated
Vendor Description
NEER™ aluminum threaded conduit bodies, covers and gaskets are used to connect and change direction of conduit runs. These conduit bodies serve as pulling fittings and permit access to conductors for splicing and maintenance.
Specifications
| Application |
Provides access to the interior of the raceway for wire pulling , splicing and maintenance, Allows connection of straight and branch conduit runs and 90 degree bends
|
|---|---|
| Country of Origin |
IN
|
| Dimensions |
15.46 in L x 5.43 in W x 7.48 in H
|
| Enclosure |
NEMA FB-1
|
| Finish |
Epoxy Powder Coated
|
| Length1 |
19.0000
|
| Material |
Die Cast Copper Free Aluminum
|
| Special Features |
|
| Standard |
UL Standard: 514A; UL Listed: E53330; CSA Standard: C22.2 No. 18.3; CSA Certified: 208044; NEMA: FB-1
|
| Sub_Brand |
Appleton
|
| Type |
Type LB
|
