NSI NSi IPLD600-4


Description

Industry Description

4 Wire Polaris 600 MCM - 6 AWG Insulated Multi-Cable Connector Block, Either Side Wire Entry Polaris Insul-Tap Connectors have wire entry ports on both sides of the connector to allow for access from either side. Eliminates the need for cover and taping. Insulated with high-dielectric strength plastisol. Molded for precise fit and supplied with removable plugs to close the entry port not being utilized. Abrasion and chemical resistant. UV resistant. Will not support combustion. AL7CU. Cold temperature rated to -45 degrees C, rated 600V, 75 degrees C. Dual rated for use with copper and/or aluminum cables. Not recommended for fine-stranded, flexible wire.

Modified Industry Description

600 MCM to 6 AWG Polaris Insulated Multi-Tap Connector , 4 Port , DOUBLE Sided Entry

AD Description

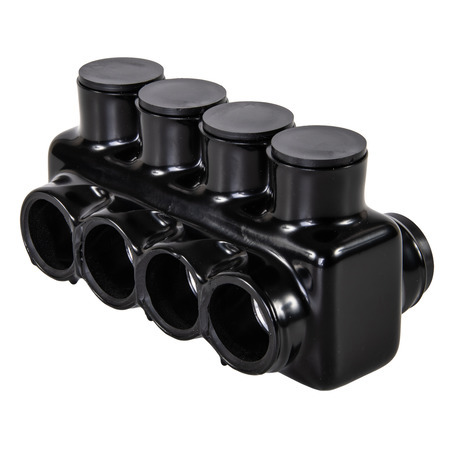

NSI Polaris™ IPLD600-4 Double Sided Entry Insulated Multi-Tap Connector, 6 AWG to 600 kcmil Aluminum/Copper Conductor, Plastisol

Vendor Description

Polaris™ in original black. The centerpiece of NSI incredible product offering, Polaris™ in original black is the insulated connector that every other connector copies. Its introduction marked the beginning of a new age, providing the fastest, safest, most professional connection possible.

Specifications

Application
Wire Termination
Brand Name
NSi
Cable_Entry
2 Side Entry
Color
Black
Conductor Type
Aluminum/Copper
Conductor Size
6 AWG to 600 kcmil
Country of Origin
USA
Finish
Black
Material
Plastisol
Maximum_Wire_Gauge
600
Minimum_Wire_Gauge
6
Number_Of_Poles
1
Number_Of_Ports
4
Package_Quantity
1
Size
L=5.850 - W=2.960 - H=3.030
Special Features

  • Dual rated multi-conductor connector for use with copper and/or aluminum cables
  • Eliminates the need for cover and taping
  • Insulated with dielectric strength plastisol for tough mechanical protection
  • Molded for precise fit and supplied with removable plugs to close the entry port not being utilized
  • Not recommended for fine stranded, flexible wire
  • Will not support combustion
  • Wire entry ports on both sides of the connector to allow for access from either side
Standard
cULus
Sub_Brand
NSi
Temperature_Rating
-45 to 75
Type
Double Sided Entry
Voltage Rating
600
Wire_Type
Class B & C
