Panduit Panduit PV10-8FX-D

Name: Panduit PV10-8FX-D
Brand: Panduit
SKU: 2153546
Price: 0.46 USD
Availability: InStock

Panduit PV10-8FX-D

Kirby Risk #: 2153546

UPC: 07498380431, 074983804313, 30074983804314, 00074983804313

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Panduit

Description

Industry Description

Fork Terminal, vinyl insulated, 12- 10 AWG, #8 stud size, expanded insulation for large wire O.D., bulk package.

Modified Industry Description

FORK TERMINAL, EXPANDED VINYL

AD Description

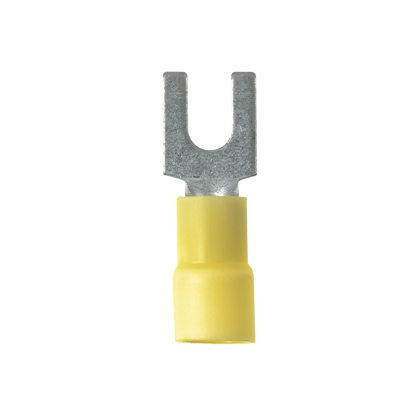

Panduit® Pan-Term® PV10-8FX-D Loose Piece Fork Terminal, 12 to 10 AWG Conductor, 1.11 in L, Brazed Seam/Insulation Support Barrel, Copper, Yellow

Color	Yellow
Connection	Funnel Entry
Conductor Size	#10
Country of Origin	MEX
Enclosure	Fork shape
Finish	Tin-Plated
Insulation	Vinyl
Length1	7.8000
Material	Copper
Mounting	5/16
Size	#8
Special Features	Brazed seam protects terminal barrel from splitting during the crimp process Expanded wire entry designed to accommodate wire with a larger insulation thickness Fork design provides for fast and easy installation, without the need to remove fastener Insulation support helps to prevent wire damage in bending applications Internal barrel serrations assure good wire contact and maximum tensile strength
Standard	UL Listed 587H E52164; CSA Certified LR31212
Sub_Brand	Panduit
Temperature_Rating	221 Degrees Fahrenheit (105 Degrees Celsius)
Type	Ring Terminal
Voltage Rating	600
