3M 3M MNG18-8FLX


Description

Industry Description

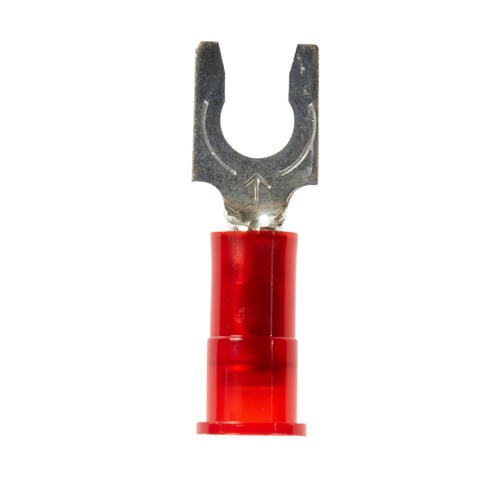

3M™ Scotchlok™ Color-Coded Locking Fork is a lug connection terminal that has a spring-like tongue to securely lock around the stud. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Modified Industry Description

Nylon Insulated w/Insulation Grip

AD Description

3M™ Scotchlok™ 051128-58805 Insulated Locking Fork Terminal, 22 to 18 AWG Conductor, 0.87 in L, Butted Seam Barrel, Nylon, Red

Vendor Description

3M™ Scotchlok™ Color Coded Locking Fork is a lug connection terminal that has a spring-like tongue to securely lock around the stud.

Specifications

Brand Name
3M
Color
Red
Conductor Size
22 to 18
Country of Origin
USA
Finish
Electro Tin Plated
Label_Description
LOCKING FORK NYLON INSULATED, 100/BOTTLE
Material
Nylon
Operating_Voltage
100 per bottle
Package_Quantity
100
Special Features

  • 0.34 in maximum lock width
  • Abrasion and corrosion resistant, flared, nylon sleeve insulation ensures a positive grip and has a stepped design for mistake-proof crimping
  • Crimp termination
  • Electrolytic copper construction offers good conductivity
  • Free hanging (in-line) mounting
  • Funnel designed, seamless brass sleeve offers easy insertion of wires
  • Red nylon insulated grip, butted seam barrel ensures a secure fit and offers reliable performance
  • Spring like tongue firmly fits around the stud
Standard
UL and CSA
Stud_Size
#8
Sub_Brand
3M
Terminal_Size
22 - 18 AWG
Type
Insulated Locking
Voltage Rating
600/1000
