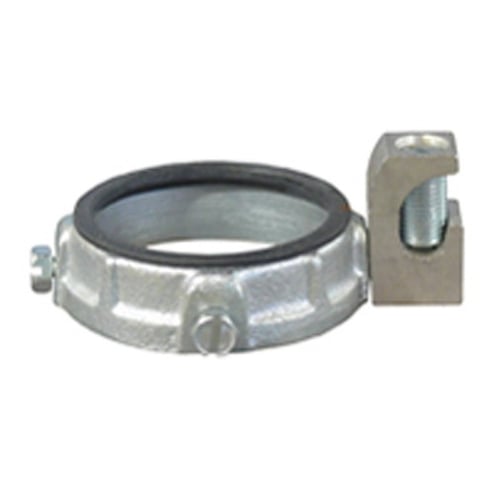

Appleton Appleton GIB-400LS-25AC


Description

Industry Description

Insulated Grounding Bushing With Aluminum Lay-In-Lug, Size: 4 IN, Material: Malleable Iron, Finish: Zinc Electroplated Body, Tin Plated Lug, Temperature Rating: 150 DEG C, Dimensions: 1.06 IN Height X 5.19 IN Diameter, Cable Size: 6 AWG - 250 KCMIL Stranded, Turning Radius: 3.81 IN, Standard: UL 467, E6581, CSA C22.2 No. 41, NEMA FB-1, For Use With Threaded Rigid Metal Conduit And IMC

Modified Industry Description

4 IN INSULATED GROUNDING BUSHING ALUMINUM

AD Description

Appleton® GIB-400LS-25AC GIB-LS-AC Grounding Bushing With Aluminum Lay-In-Lug, 6 AWG to 250 kcmil AC Cable, 4 in Trade, Malleable Iron, Zinc Electroplated

Specifications

Application
For Use With Threaded Rigid Metal Conduit And IMC
Brand Name
Appleton
Country of Origin
MX
Finish
Zinc Electroplated
Material
Malleable Iron
Special Features

  • Can be used with a locknut to terminate conduit at an enclosure
  • Fasten and ground threadless rigid, IMC metal conduit to an enclosure, copper or aluminum conductors
  • Insulating liner material is self extinguishing
  • Lug used to connect bonding jumper to a neutral bus bar
  • Lugs not sold separately
  • Provided with a steel, zinc plated set screw allowing fitting to lock bushing in any desired position
  • Provides a compact means of grounding conduit through an insulated bushing
  • The plastic liner is tough, It resists corrosion, chemicals and temperature extremes, surface friction is so low that wires can be pulled with virtually no abrasion on the cable insulation
Standard
UL 467, E6581, CSA C22.2 No. 41, NEMA FB-1
Sub_Brand
Appleton
Temperature_Rating
302
Trade_Size
4
Type
Insulated Grounding Bushing With Aluminum Lay-In-Lug
