TPI TPI G2911072C


Description

Industry Description

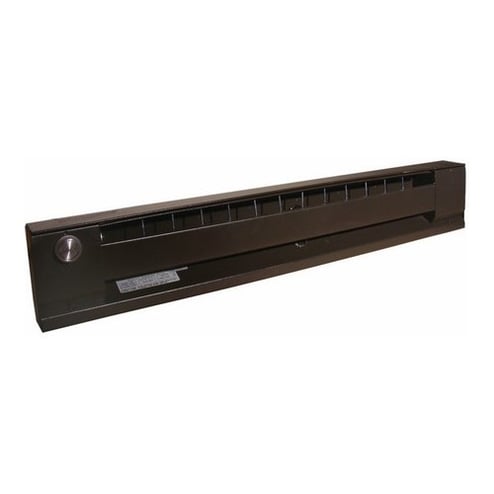

Electric Baseboard - Heavy-Duty Commercial Convection Heater, 277 V, 1 PH, 4.1 AMP, Steel Housing Material, Wall Mounting, Dimensions- 72 Length X 2-1/2 Depth X 6 Height IN, 1125 WTT, BTU Rating- 3825, Bronze

Modified Industry Description

1125W 277V 72IN Commercial Baseboard

AD Description

TPI G2911072C 2900C 1-Phase Heavy Duty Standard Electric Baseboard Convection Heater, 3825 Btu/hr Capacity, 277 VAC, 1125 W Power Rating, Wall Mount

Specifications

Amperage Rating
4.1
Application
Indoor-Commercial/Residential/Some Industrial
Brand Name
TPI
Country of Origin
US
DimensionsInches
72 Length X 2-1/2 Depth X 6 Height IN
Housing_Material
Steel
Model
G2911-072C
Mounting
Wall
Phase
1
Special_Features

  • A full length wireway provided along the back of the heater
  • Heater can be mounted to the wall by using the key hole knockouts every 4 in at the back of the heater
  • Optional in-built thermostats field installed in the junction box
  • Over temperature thermal limit extends entire length of heated area
  • Painted 22 ga steel front with 20 ga junction boxes located on each end of the heater - junction boxes contain quick connect cable clamps and 6 in ground lead wires
  • Stainless steel heating element and aluminum fins
  • Standard inlet and outlet wireguards

Standard
cETLus Listed
Sub_Brand
TPI
Trade_Size
72
Type
Electric Baseboard - Heavy-Duty
Voltage Rating
277
Wattage
1125
