Ocal Ocal X37-G


Description

Industry Description

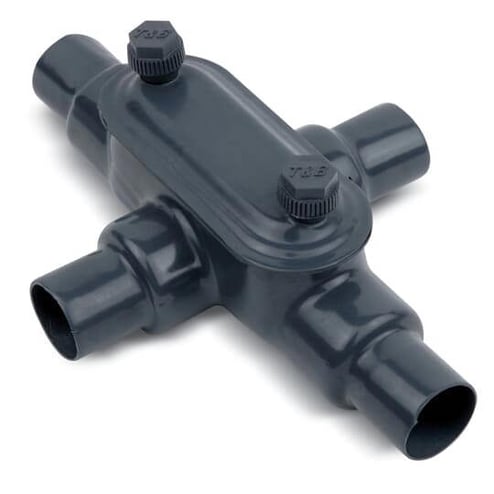

PVC Coated Conduit Body, X Type, Form 7, Size 1 Inch/27 Metric, Iron, Dark Gray

Modified Industry Description

1 OCAL X37 GRAY

AD Description

Ocal® OCAL-BLUE® X37-G Type X Conduit Body, 1 in Hub, Form 7 Form, 16.9 cu-in Capacity, Iron, PVC Coated

Vendor Description

With outstanding performance in corrosive environments, Ocal® PVC coated conduit and fittings extend the life of your electrical system for many years beyond the lifespan of standard rigid conduit systems. The Ocal® UL verified 4X conduit body, including covers with a leakproof O-ring seal, meets the latest NEMA standard for both corrosion and damage from liquids.

Specifications

Application
Act as pull outlets for conductors being installed
Brand Name
Ocal
Color
Dark Gray
Configuration
X
Country of Origin
US
Finish
PVC Coated
Form
7
Hub_Size
1
Material
Iron
Special Features

  • A minimum of 0.04 in PVC coating is bonded to the exterior
  • Bodies are designed with a flat back, allowing more cubic inch capacity
  • Connect conduit sections
  • Covers are coated with a molded flange to seal the conduit body while the conduit body is molded with a flat surface on its opening to seal with the cover
  • Make 90 deg bends in conduit runs
  • Ocal® conduit bodies are shipped with a cover and encapsulated stainless steel screws
  • Ocal® Pressure sealing sleeves on all threaded hubs
  • Provide for access to conductors for maintenance and future system changes
  • Provide taps for branch conduit runs
  • The conduit body and cover are double coated with a nominal 0.002 in blue urethane on both the interior and exterior, before PVC coating is applied
Standard
E 2969
Sub_Brand
Ocal
Trade_Size
1
Type
Type X
Width_2
14.8700
